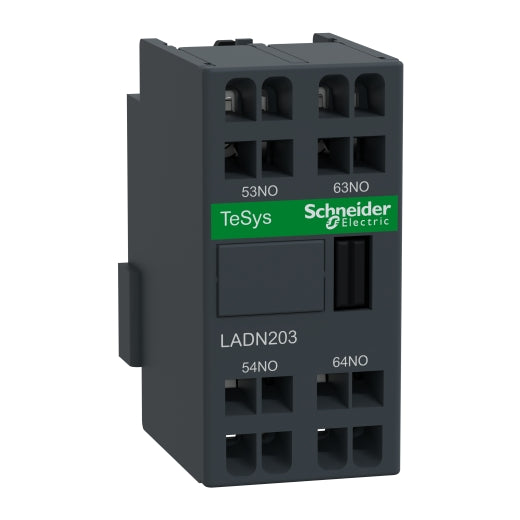

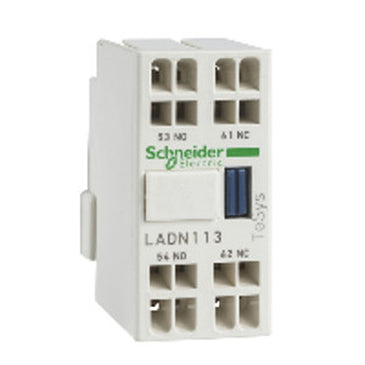

TeSys D Auxiliary Contact Block, 2 NO, Spring Terminals, 690 V AC 25-400 Hz
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This auxiliary contact block has 2 normally open contacts. This auxiliary contact block mounts on the top of TeSys Deca contactors and control relays. Spring terminals are used for connections. The auxiliary contact block is 1.89 inches tall, 1.02 inches wide and 1.65 inches deep. The block is UL Listed.Specifications
- Range
- TeSys
TeSys Deca - Product name
- TeSys Deca
- Product or component type
- Auxiliary contact block
- device short name
- LADN
- Range compatibility
- TeSys D CAD
TeSys D LC1D
TeSys Deca CAD
TeSys Deca LC1D - Mounting location
- Front
- Pole contact composition
- 2 NO
- Contacts operation
- Instantaneous
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- [Ie] rated operational current
- 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13 - [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA - [Ith] conventional free air thermal current
- 10 A (at 60 °C)
- Standards
- EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
EN 50012 - product certifications
- CB
UL
CSA
CCC
EAC
UKCA - Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1 - Permissible short-time rating
- 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms - Protection type
- GG fuse 10 A
- Mechanical durability
- 30 Mcycles
- Minimum switching current
- 5 mA
- Minimum switching voltage
- 17 V
- Non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact - Insulation resistance
- > 10 MOhm
- Connections - terminals
- Spring terminals 2 cable(s) 2.5 mm²flexible without cable end
Spring terminals 2 cable(s) 2.5 mm²rigid - Height
- 48 mm
- Width
- 26 mm
- Depth
- 42 mm
- Colour
- Dark grey
- Environmental characteristic
- Normal environment
- IP degree of protection
- IP20 conforming to IEC 60529
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for storage
- -60…80 °C
- Ambient air temperature for operation
- -5…60 °C
- Operating altitude
- 3000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.1 cm
- Package 1 Width
- 4.2 cm
- Package 1 Length
- 2.8 cm
- Package 1 Weight
- 38.0 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 2.8 cm
- Package 2 Width
- 8.6 cm
- Package 2 Length
- 25.5 cm
- Package 2 Weight
- 381.0 g
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 160
- Package 3 Height
- 15.0 cm
- Package 3 Width
- 30.0 cm
- Package 3 Length
- 40.0 cm
- Package 3 Weight
- 6.547 kg
