8501XO33V02 | RELAY 600VAC 10AMP NEMA OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: 8501XO33V02

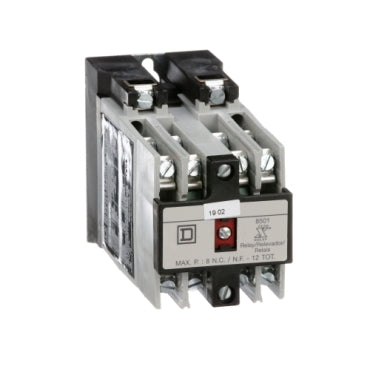

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO33V02

Jump to: Overview & Specifications Reviews

Overview Details for 8501XO33V02

RELAY 600VAC 10AMP NEMA OPTIONS

Specifications

Range: 8501X
Relay Type: Control
Product: Relay
Current Rating: 10 A AC;5 A DC
Coil Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
control circuit voltage limits: Operational 0.85...1.1 Uc AC 50/60 Hz
rated breaking capacity: 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity: 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in VA: 148 VA 60 Hz;143 VA 50 Hz
hold-in power consumption in VA: 23 VA 60 Hz;25 VA 50 Hz
operating time: 15 ms - pick-up;16 ms - drop-out
Contact Configuration: 3 NO + 3 NC 6 standard contact cartridges
Electrical Connection: Screw clamp terminals
AWG gauge: AWG 18...AWG 12 copper
tightening torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type: Panel
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 5.16 in (131.06 mm)
Operating Temperature: -40…160 °F (-40…71 °C)
Certifications: UL listed file E78403 CCN NKCR;CSA LR60905 class 3211 03
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901340669
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.54 in (6.452 cm)
Package 1 Width: 1.00 in (2.54 cm)
Package 1 Length: 6.45 in (16.387 cm)
Package 1 Weight: 2.40 lb(US) (1.089 kg)
Warranty: 18 months
