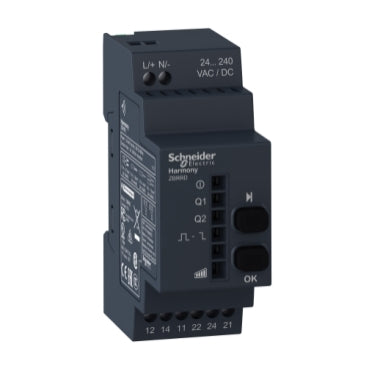

Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs
This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.Specifications
- Range of Product
- Harmony
- Product or Component Type
- Programmable receiver
- Device short name
- ZBRRD
- Product Specific Application
- Interface to actuators
- Function of module
- Bi-stable, Monostable
- reset time
- 2 ms time delay
- Transmission frequency
- 2405 MHz
- emission class
- 5M00G7W
- Antenna type
- Omnidirectional
- nominal output current
- 0.3 A 48 V DC EN/IEC 60947-5-1, 3 A 24 V DC UL 508, 1.5 A 240 V AC EN/IEC 60947-5-1, 3 A 120 V AC EN/IEC 60947-5-1, 3 A 240 V AC UL 508, 3 A 24 V DC CSA C22.2 No 14, 3 A 240 V AC CSA C22.2 No 14
- Output Type
- 2 relays
- Output contacts
- 2 C/O
- Input output isolation
- Galvanic isolation
- time delay range
- 0.5 s - 15...15 %)
- Switching capacity in VA
- 1250 VA
- maximum switching current
- 5 mA AC/DC
- maximum switching voltage
- 250 V AC/DC
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz - 10...10 %
- communication port protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- maximum sensing distance
- 328.08 ft (100 m) in free field, 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure, 131.23 ft (40 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Response Time
- < 30 ms after transmitter clicks
- utilisation category
- AC-15 : B300 EN/IEC 60947-5-1, DC-12 EN/IEC 60947-5-1
- maximum power consumption in W
- 4 W AC/DC
- breaking capacity
- 15 W
- breaking capacity
- 750 VA
- Control circuit frequency
- 50...60 Hz +/- 10 %
- short-circuit protection
- 0.4 A fuse fast blow
- operating position
- Any position without derating
- electrical connection
- 1 conductor cable 0.00…0.00 in² (0.14…2.5 mm²) - AWG 26...AWG 14 - solid - without cable end IEC 60947-1, 2 conductors cable 0.00…0.00 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - solid - without cable end IEC 60947-1, 1 conductor cable 0.00…0.01 in² (0.14…4 mm²) - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1, 2 conductors cable 0.00…0.00 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
- tightening torque
- 4.43…8.85 lbf.in (0.5…1 N.m) EN/IEC 60947-1
- Housing material
- Self-extinguishing plastic
- status LED
- 1 LED Green power ON, 2 LEDs Green relay ON, 2 LEDs Green function mode, 1 LED green and yellow reception signal
- mounting support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715, Mounting plate
- rated short-duration power frequency withstand voltage
- 1.5 kV 50 Hz EN/IEC 60947-5-1
- [Uimp] rated impulse withstand voltage
- 4 kV
- surge withstand
- 1 kV differential mode IEC 61000-4-5, 2 kV common mode IEC 61000-4-5
- Max power consumption in W
- 1 mW
- Number of channels
- 1
- Modulation technique
- O-QPSK
- Bandwidth
- 5 MHz
- Antenna gain
- 0 dBi
- Width
- 1.42 in (36 mm)
- Height
- 4.25 in (108 mm)
- Depth
- 2.95 in (75 mm)
- Net Weight
- 0.29 lb(US) (0.13 kg)
- standards
- CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1
- radio agreement
- RSS, SRRC, ANATEL, ARIB T66, FCC, ICASA
- Product Certifications
- CCC, UL, GOST, CSA, C-tick
- Marking
- CE
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- relative humidity
- 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1
- vibration resistance
- +/- 7.5 mm 5…14 Hz)IEC 60068-2-6, 2 gn 8…150 Hz)IEC 60068-2-6
- shock resistance
- 10 gn 16 ms) 6000 shocks IEC 60068-2-27
- IP degree of protection
- IP20 IEC 60529 casing), IP20 terminals)
- pollution degree
- 2 IEC 60664-1
- overvoltage category
- II IEC 60664-1
- insulation resistance
- > 500 MOhm 500 V DC NF C 20-030
- [Ui] rated insulation voltage
- 250 V IEC 60664-1
- electromagnetic compatibility
- Immunity for industrial environments EN/IEC 61000-6-2, Conducted and radiated emissionsclass B CISPR 22, Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2, Electrostatic discharge immunity test 6 kV on contact (on metal parts)) IEC 61000-4-2, Susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) IEC 61000-4-3, Susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) IEC 61000-4-3, Electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4, Electrical fast transient/burst immunity test 2 kV power supply wires) IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) IEC 61000-4-5, Conducted RF disturbances 10 V IEC 61000-4-6, Immunity to microbreaks and voltage drops 10 ms IEC 61000-4-11, Radiated emission ETSI EN 300 440-1, Conducted emission EN 300-489-1, Conducted emission ETSI EN 300 489-3, Radiated emission ETSI EN 300 440-2
- Electrical durability
- 100000 cycles
- Mechanical durability
- 1000000 cycles
- Category
- 22470-XB5R WIRELESS PUSH BUTTON
- Discount Schedule
- I
- GTIN
- 3606480521164
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.77 in (4.5 cm)
- Package 1 Width
- 3.11 in (7.9 cm)
- Package 1 Length
- 3.82 in (9.7 cm)
- Package 1 Weight
- 4.87 oz (138.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 64
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 21.03 lb(US) (9.541 kg)
- Warranty
- 18 months
