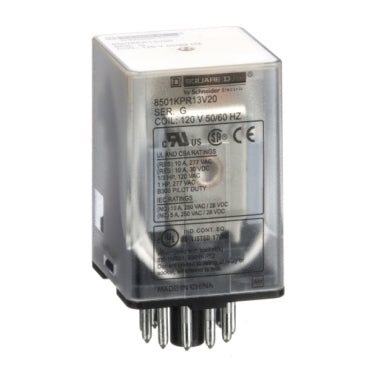

8501KPR13V20 | 8501K General Purpose Plug-in Relay, Socket, 3PDT, 120V AC, 1 HP at 277V, 3A | Square D by Schneider Electric

Brand: Square DSKU: 8501KPR13V20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501KPR13V20

Jump to: Overview & Specifications Reviews

Overview Details for 8501KPR13V20

8501K General Purpose Plug-in Relay, Socket, 3PDT, 120V AC, 1 HP at 277V, 3A

8501K General Purpose Plug-in Relay

Switch Function: 3PDT
Control Circuit Voltage: 120V AC
Local Signaling: no indicator
Rated Power in HP: 1 HP at 277V, 0.33 HP at 120V
Rated Breaking Capacity: 3A at 120V AC

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR61 or 8501NR62 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

product range: 8501K
product type: Relay
Relay Type: General purpose
mounting type: Socket
contact composition: 3PDT
[Uc] control circuit voltage: 120 V AC
pilot light: No indicator
manual operator: Without test button
horsepower rating: 1 hp 277 V AC;0.33 hp 120 V AC
breaking capacity: 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
maximum switching voltage: 300 V AC;30 V DC
contact material: Silver alloy (AgNi)
operating time: 20 ms - pick-up;20 ms - drop-out
shape of pins: Tubular
for use with: 8501NR62;8501NR61
ambient temperature range - operational: -40…131 °F (-40…55 °C)
product certifications: UL Listed;UL Recognized;CSA;CE
Height: 2.66 in (67.56 mm)
Width: 1.4 in (35.56 mm)
Depth: 1.4 in (35.56 mm)
Category: 21141-8501 KP
Discount Schedule: CP2
GTIN: 785901219743
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.70 in (4.318 cm)
Package 1 Width: 1.70 in (4.318 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 3.36 oz (95.254 g)
