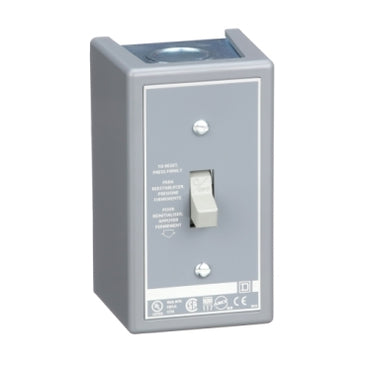

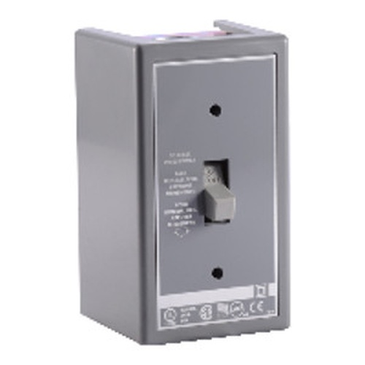

2510FG2 | Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, No Indicator, 277VAC | Square D by Schneider Electric

Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, No Indicator, 277VAC

Fractional Horsepower Manual Starter

• Line Rated Current: 16A
• Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115 VDC, 230 VDC; 2 HP at 230 VAC
• System Voltage: 277V AC, 230V DC
• Poles Description: 2-Pole
• Control Type: Toggle Switch
• Number of Phases: 1-Phase
• Local Signaling: No Indicator
• Reset: Manual
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Listed and CSA Certified for global applications. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
