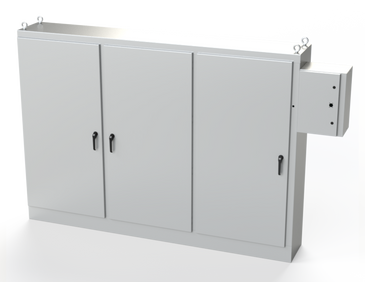

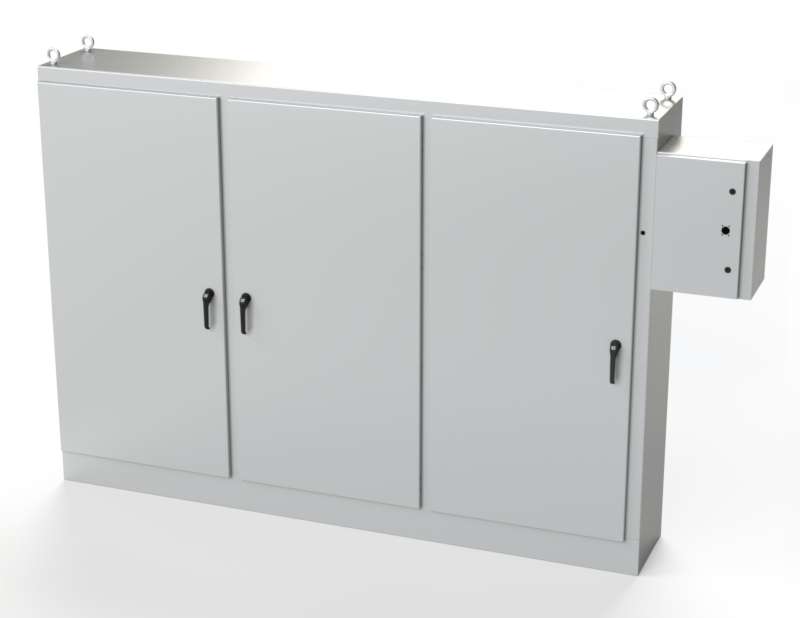

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-84XR3EW18G

Jump to: Overview & Specifications Reviews

Overview Details for SCE-84XR3EW18G

Construction

0.125 In. carbon steel.
Seams continously welded and ground smooth.
Flange trough collar around all sides of door opening.
Body stiffeners in large enclosures for extra rigidity.
Heavy duty lifting eyes anchor into reinforced top.
Removable center post to permit easy sub-panel installation.
Concealed hinges.
Black zinc die cast padlocking handles.
3-point latching mechanism.
Large removable print pockets.
Pour in place oil and water resistant gasket
Removable panels are mounted on collar studs.
Defeater on master door requires a screwdriver to open.
Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
Ground stud on door and body.
Provisions for light kit.
Hole plugs provided to seal holes in bottom of enclosure.

Application

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provision for Compact Fusible Disconnect with Rotary handle Disconnect 30 to 200 amp Allen-Bradley 194R, Square D GS2, Eaton/Bussmann R9, Siemens CFS models and Socomec Fuserbloc models. Provides protection from dirt, dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

ANSI-61 gray powder coated inside and out.
Optional sub-panels powder coated white.
Part numbers ending in "G" have galvanized subpanels installed.

Industry Standards - (IS3)

NEMA Type 3R, 12 and Type 13
UL Listed Type 3R and 12
CSA Type 3R and 12
IEC 60529
IP 55

Notes

Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

*Part numbers ending in "G" have galvanized sub-panels installed.

Cable Operated Mechanical Locking
Patent US 11,396,762 B2

Specifications

Item Number	SCE-84XR3EW18G
Brand	Saginaw
Enclosure Depth (IN)	18
Enclosure Height (IN)	84
Enclosure Rating	NEMA 12
Enclosure Rating	NEMA 3R
Enclosure Width (IN)	118
