SCE-8066SC | NEMA 3R, 12, 4 | SC Enclosure, 8H x 6W x 6D | Saginaw

Brand: SaginawSKU: SCE-8066SC

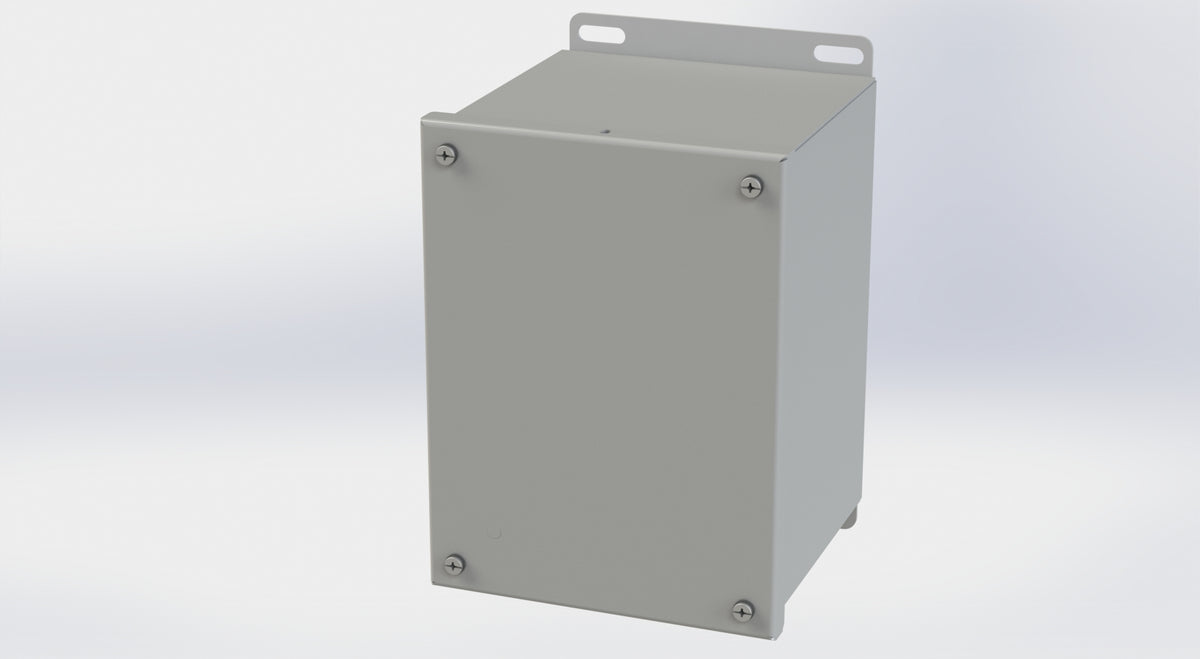

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-8066SC

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-8066SC

Construction

0.063 In. carbon steel.
Seams continuously welded and ground smooth, no holes or knock-outs.
Captivated cover screws thread into sealed wells.
Pour in place oil and water resistant gasket

Application

Designed for use as electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control enclosures. Provides protection from dust, oil and water.

Finish

ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-8066SC
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	6
Enclosure Height (IN)	8
Enclosure Type	SC Enclosure
Enclosure Width (IN)	6
