Details for SCE-72XR4018G

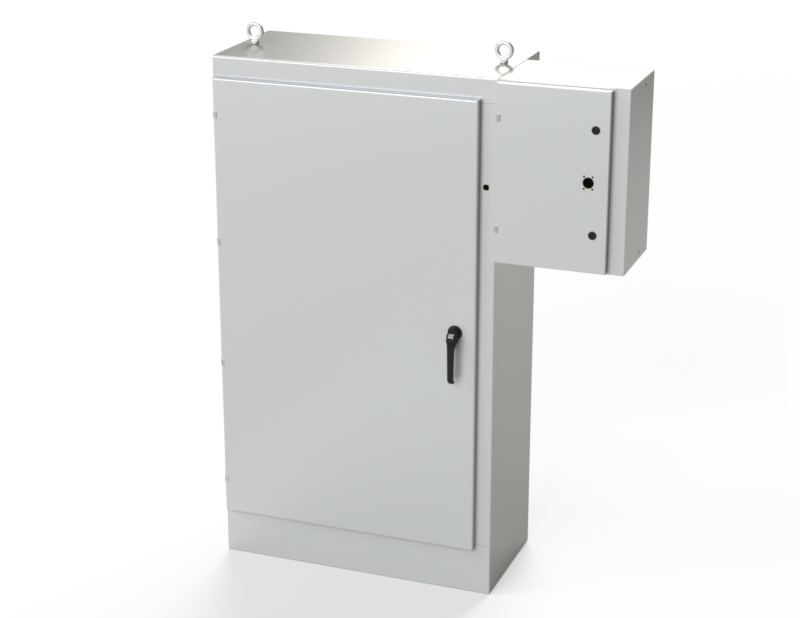

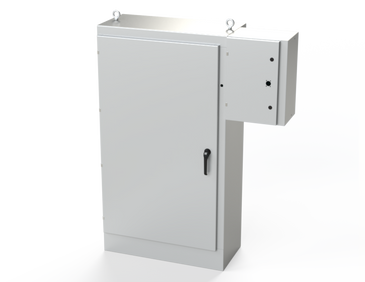

1DR XR Enclosure w/ Rotary EXR
Construction
- 0.125 in carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Body stiffeners in large enclosures for extra rigidity
- Heavy duty lifting eyes anchor into reinforced top.
- Removable center posts permit easy subpanel installation.
- Concealed hinges.
- Black zinc die cast padlocking handles.
- 3-point latching mechanism.
- Large removable print pockets.
- Pour in place oil and water resistant gasket.
- Removable panels mount on collar studs.
- Defeater on master door requires a screwdriver to open.
- Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
- Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
- Hole plugs provided to seal holes in bottom of enclosure.
- Ground stud on door and body.
- Provisions for light kit.
- Provision Compact Fusible Disconnect with Rotary handle Disconnect 30 to 200 amp Allen-Bradley 194R,Square D GS2, Eaton/Bussmann R9, Siemens CFS modelsand Socomec Fuserbloc models
Application
Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provision for Compact Fusible Disconnect with Rotary handle Disconnect 30 to 200 amp Allen-Bradley 194R, Square D GS2, Eaton/Bussmann R9, Siemens CFS models and Socomec Fuserbloc models. Provides protection from dirt, dust, oil and water. For outdoor application a drip shield and drain vent is recommended.
For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdfXR1DR
Finish
ANSI-61 gray powder coated inside and out.
Optional sub-panels powder coated white.
*Part numbers ending in "G" have galvanized sub-panels installed.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.
*Part numbers ending in "G" have galvanized sub-panels installed.
Cable Operated Mechanical Locking
Patent US 11,396,762 B2
Specifications
| Item Number | SCE-72XR4018G |
| Brand | Saginaw |
| Enclosure Depth (IN) | 18 |
| Enclosure Height (IN) | 72 |
| Enclosure Rating | NEMA 12 |
| Enclosure Rating | NEMA 3R |
| Enclosure Width (IN) | 40 |
