SCE-72XD7818SS    | NEMA 3R, 12, 4, 4X | S.S. 2DR XD Enclosure, 72H x 78W x 18D  |   Saginaw
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SaginawSKU: SCE-72XD7818SS

Web Price:

$14,085.28
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
FREIGHT DAMAGE POLICY
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

SCE-72XD7818SS | NEMA 3R, 12, 4, 4X | S.S. 2DR XD Enclosure, 72H x 78W x 18D | Saginaw

Saginaw | SCE-72XD7818SS

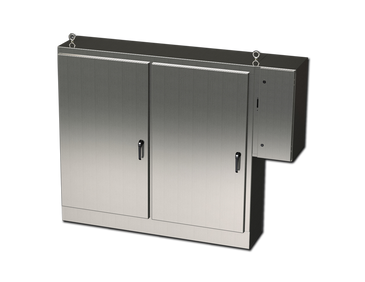

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72XD7818SS

Overview

Details for SCE-72XD7818SS

NEMA 3R, 12, 4, 4X | S.S. 2DR XD Enclosure, 72H x 78W x 18D

Construction

  • 0.104 In. stainless steel Type 304 or SS6 for 316/316L.
  • Seams continously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Body stiffeners for extra rigidity.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Removable center post to permit easy sub-panel installation.
  • Concealed hinges.
  • Black zinc die cast padlocking handles.
  • 3-point latching mechanism.
  • Large removable print pockets.
  • Pour in place oil and water resistant gasket
  • Removable panels are mounted on collar studs.
  • Defeater on master door requires a screwdriver to open.
  • Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
  • Mechanical interlock activated by master door prevents slave doors from being opened first. Door can be closed in any order.
  • Ground stud on door and body
  • Provisions for light kit.
  • Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only

Application

Designed to house the main power supply in external enclosure on the right side of main enclosure, keeping the live side of the power supply separate from the primary electrical equipment. Provides protection from dirt, dust, oil and water and can house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

For use with 30 to 200 Amp Flange mount disconnect Square D, Allen Bradley, and some Eaton/Cutler Hammer operating handles.
Disconnect switch (or circuit breaker) and operating mechanism are not furnished with enclosure.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-72XD7818SS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 18
Enclosure Height (IN) 72
Enclosure Type S.S. 2DR XD Enclosure
Enclosure Width (IN) 78
