SCE-72EL3630SSFS | NEMA 3R, 12, 4, 4X | S.S. EL FS Enclosure, 72H x 36W x 30D | Saginaw

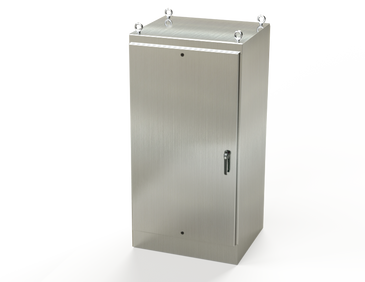

Saginaw | SCE-72EL3630SSFS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-72EL3630SSFS

Overview

Details for SCE-72EL3630SSFS

NEMA 3R, 12, 4, 4X | S.S. EL FS Enclosure, 72H x 36W x 30D

Construction

  • 0.104 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Pour in place oil and water resistant gasket
  • Flange trough collar around all sides of door opening.
  • Concealed hinges.
  • Removable and interchangeable doors.
  • Black zinc die cast keylocking/padlocking handle. 3-point latching mechanism.
    Latch rods have ramp shoes for easier door closing.
  • Removable print pocket.
  • Lifting eyes for easy handling.
  • Ground studs on door and body.
  • Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
  • No door stiffeners required.
  • Provisions for light kit.

Application

Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Optional panels and accessories available.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-72EL3630SSFS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 30
Enclosure Height (IN) 72
Enclosure Type S.S. EL FS Enclosure
Enclosure Width (IN) 36
