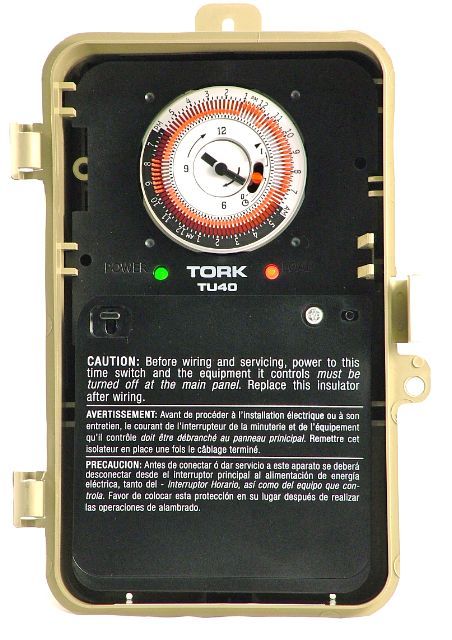

TU40 | TORK UNIVERSAL TIMER 24 HR MULTIVOLTAGE DPDT | Tork / Robertshaw

The Tork® TU40 Series - Universal 24 hour time switches with multi-voltage options offer automatic On-Off control when operation is required at the same time every day, seven days a week. Applications include On-Off control of heating, air conditioning, display lighting, ventilating, pumps, fans and security systems. Tork Electric Timers are sold exclusively through Robertshaw® to HVACR wholesalers.

Brand: RobertshawSKU: TU40

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TU40

Jump to: Overview & Specifications Reviews

Overview Details for TU40

Electric Timers Series

Automatic input voltage detection without DIP switches
LED indicators for load and power
Includes On/Off/Auto switch
Power consumption: 6 VA maximum
Temporary manual override is standard
Combination 1/2” and 3/4” knockouts on both sides, bottom and back
Enclosure includes indoor/outdoor NEMA 3R plastic

Specifications

Item Number	TU40
Brand	Robertshaw
42011-00	PARAGON
42013-00	PARAGON
42013-20	PARAGON
44005-00	PARAGON
Automatic Operation	Minimum setting: 15 minutes
Contact Ratings	40 Amps Resistive; 30 Amps Inductive; 720 VA Pilot Duty; 1HP 120V AC; 2HP 240V AC(Normally Open)
Electrical Rating	120V AC\|208-240V AC\|277V AC
Enclosure	Plastic
P101-00	PARAGON
P101-00M	PARAGON
P101-00P	PARAGON
P101-00PC-RT	PARAGON
P103-00	PARAGON
P103-00M	PARAGON
P103-00P	PARAGON
P103-00PC-RT	PARAGON
P104-71	PARAGON
P104-71M	PARAGON
P104-71P	PARAGON
P104-71PC-RT	PARAGON
P104-71RT	PARAGON
Series Application	24 Hour Electromechanical Timer
Switch	4 in 1 DPDT; SPST; SPDT; DPST
Temperature Range	-35°F to 116° F (-35°C to 47°C)
