O16-200 | PRESSURE CONTROL | Ranco / Robertshaw

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Brand: RobertshawSKU: O16-200

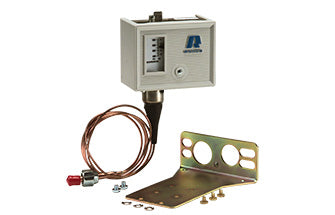

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to O16-200

Jump to: Overview & Specifications Reviews

Overview Details for O16-200

O Series Pressure Controls

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible foreasy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

Specifications

Item Number	O16-200
Brand	Robertshaw
010-1106	RANCO
010-1895	RANCO
011-1703	RANCO
011-1709	RANCO
011-1712	RANCO
011-1767	RANCO
011-1776	RANCO
011-1796	RANCO
011-3014	RANCO
011-3021	RANCO
011-3029	RANCO
011-33501	RANCO
011-3504	RANCO
011-3505	RAM
011-3509	RANCO
011-3510	RANCO
011-3513	RANCO
011-3514	RANCO
011-3515	RANCO
011-3517	RANCO
012-1618	RANCO
016-1200	RANCO
016-1201	RANCO
016-1202	RANCO
016-1203	RANCO
016-1205	RANCO
016-200-070	RANCO
016-200	RANCO
016-205	RANCO
016-206	RANCO
016-208	RANCO
016-210	RANCO
016-211	RANCO
016-214	RANCO
016-250	RANCO
016-268	RANCO
016-5761	RANCO
016200	RANCO
021-6480	RANCO
021-7480	RANCO
060-117366	DANFOSS
060-1173	DANFOSS
060-118066	DANFOSS
060-205491	DANFOSS
1156190	KELVINATOR
1156947	KELVINATOR
1316	WEBSTER ENGINEERING
146957	HUSSMAN
25-5812P	BORG-WARNER (YORK)
25-5812PL	BORG-WARNER (YORK)
25-7706PL	BORG-WARNER (YORK)
25-8957PL	BORG-WARNER (YORK)
258783	HUSSMAN
258784	HUSSMAN
262HAP08	JOHNSON CONTROLS
270AP20AN-2309	JOHNSON CONTROLS
289-1714	LARKIN COILS
2P4	JOHNSON CONTROLS
2P9	JOHNSON CONTROLS
3100-008	UNI-LINE
313978	HUSSMAN
316402	HUSSMAN
316403	HUSSMAN
406-576	KRAMER-TRANTON CO.
406-577	KRAMER-TRANTON CO.
406-597	KRAMER-TRANTON CO.
406-628	KRAMER-TRANTON CO.
4P13	JOHNSON CONTROLS
4P14	JOHNSON CONTROLS
4P14A	JOHNSON CONTROLS
52921900	CONTROL DATA CORP.
52921901	CONTROL DATA CORP.
52921902	CONTROL DATA CORP.
5766R	BOHN HEAT TRANSFER
650100	BRISTOL
66201392274	UNI-LINE
8404-37	ADDISON(HEAT CONTROL
9041051-01	MILE HIGH EQUIP.
9041051-02	MILE HIGH EQUIP.
92274	UNI-LINE
9997-241	UNI-LINE
B52071A	KECO
Capillary Length	48" (1.2m)
CNT-95	DUNHAM BUSH
Comments	IP44 part number: 206-00232-001
Differential	40 PSI (3 bar) Fixed
L-59P176	ITT/GENERAL CONTROL
L-59P177	ITT/GENERAL CONTROL
MG21-2644	ROBERTSHAW
MG21-2645	ROBERTSHAW
MG21-2646	ROBERTSHAW
O10-1106	RANCO
O10-1895	RANCO
O11-1703	RANCO
O11-1709	RANCO
O11-1712	RANCO
O11-1767	RANCO
O11-1776	RANCO
O11-1796	RANCO
O11-3014	RANCO
O11-3021	RANCO
O11-3029	RANCO
O11-33501	RANCO
O11-3504	RANCO
O11-3505	RANCO
O11-3509	RANCO
O11-3510	RANCO
O11-3513	RANCO
O11-3514	RANCO
O11-3515	RANCO
O11-3517	RANCO
O12-1570	RANCO
O12-1618	RANCO
O16-1200	RANCO
O16-1201	RANCO
O16-1202	RANCO
O16-1203	RANCO
O16-1205	RANCO
O16-200-070	Invensys Climate Controls
O16-205	RANCO
O16-206	RANCO
O16-208	RANCO
O16-210	RANCO
O16-211	RANCO
O16-214	RANCO
O16-250	RANCO
O16-268	RANCO
O16-5761	RANCO
O16200	RANCO
O21-6480	RANCO
O21-7480	RANCO
O25-05812P	BORG-WARNER (YORK)
O25-07706	BORG-WARNER (YORK)
O25-07706PLO	BORG-WARNER (YORK)
O25-08957	BORG-WARNER (YORK)
O25-12238	BORG-WARNER (YORK)
O25-13875	BORG-WARNER (YORK)
O25-8957PL	BORG-WARNER (YORK)
P-0216	LIEBERT CORP.
P-3080	LIEBERT CORP.
P-3088	LIEBERT CORP.
P-308A	LIEBERT CORP.
P-3120	LIEBERT CORP.
P-312A	LIEBERT CORP.
P-312B	LIEBERT CORP.
P-312C	LIEBERT CORP.
P-3	DUNHAM BUSH
P020-0160	LIEBERT CORP.
P05-5820	LIEBERT CORP.
P270DA-1	JOHNSON CONTROLS
P422B	HONEYWELL
P70DA-13	JOHNSON CONTROLS
P70DA-1	JOHNSON CONTROLS
P70DA-20	JOHNSON CONTROLS
P70DA-30	JOHNSON CONTROLS
P70DA-49	JOHNSON CONTROLS
P70DA-50	JOHNSON CONTROLS
P70DA-52	JOHNSON CONTROLS
P70DA-54	JOHNSON CONTROLS
P70DA-59	JOHNSON CONTROLS
P70DA-60	JOHNSON CONTROLS
P70DA-62	JOHNSON CONTROLS
P70DA-64	JOHNSON CONTROLS
P70DA-69	JOHNSON CONTROLS
P70DA-6	JOHNSON CONTROLS
P70DA-8	JOHNSON CONTROLS
P70KA-14	JOHNSON CONTROLS
P70KA-15	JOHNSON CONTROLS
P70KA-16	JOHNSON CONTROLS
P70KA-17	JOHNSON CONTROLS
P70KA-1	JOHNSON CONTROLS
P70KA-1C	PENN/BASO
Pressure Connection	1/4" SAE Flare Nut
Pressure Range	150 to 450 PSI (10 to 31 bar)
PS1-Y5K	EMERSON
Region	NA
Reset	Manual
Series Application	Single High Pressure Control
Switch	SPDT
