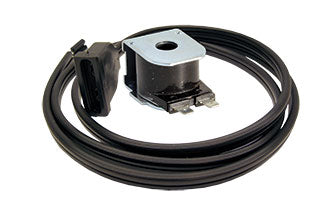

LDK-110000-070 | SOLENOID COIL 24 VAC | Ranco / Robertshaw

The Ranco® LDK Series Solenoid Coils are designed for use with current production (Generation 4) V0, V1, V2, V3, V6, V10 and V12 Ranco 4-way Reversing Valves. These color-coded, encapsulated, continuous duty, moisture resistant electro-magnetic coils are designed to operate the pilot valve that controls these reversing valves. A W29 wiring harness with 48” leads is included with the solenoid coil.

Brand: RobertshawSKU: LDK-110000-070

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LDK-110000-070

Jump to: Overview & Specifications Reviews

Overview Details for LDK-110000-070

LDK Series Solenoid Coils

The Ranco® LDK Series Solenoid Coils are designed for use with current production (Generation 4) V0, V1, V2, V3, V6, V10 and V12 Ranco 4-way Reversing Valves.

These color-coded, encapsulated, continuous duty, moisture resistant electro-magnetic coils are designed to operate the pilot valve that controls these reversing valves. A W29 wiring harness with 48” leads is included with the solenoid coil.

Features and Benefits

Epoxy encapsulated
Continuous duty
Moisture resistant magnetic coils
Includes wiring harness

Specifications

Item Number	LDK-110000-070
Brand	Robertshaw
Color Code	Red
Electrical Rating	24V AC
Lead Length	48" (120cm)
Power	5 Watts at 50 Hz; 4 Watts at 60 Hz
Series Application	Solenoid Coils For Reversing Valves
