Documents: E103B

Tork - E Series Instruction Manual Tork - E Series Specification Tork - E Series Multipurpose Controls Sell Sheet 2019 Uni-Line Product Catalog in English 2019 Uni-Line Product Catalog in Spanish 2018 Uni-Line Product Catalog in Portuguese 2019 Uni-Line Product Catalog in French 2018 Uni-Line Product Catalog in German 2018 Uni-Line Product Catalog in Italian Robertshaw Comprehensive Global Solutions Robertshaw Soluciones Integrales Globales Robertshaw Soluções globais abrangentes More Info

E103B | TORK 24HR TIMER DPST/120/277V | Tork / Robertshaw

The Tork® E100B series multipurpose 1 channel control comes with 120 - 277 Volts AC input voltages for 24 hour programming. Standard enclosure for indoor and outdoor settings uses patented 40 Amp contacts. Applications include display lighting, security systems, HVAC, signs, sump pumps and ventilating fans. Tork Electric Timers are sold exclusively through Robertshaw® to HVACR wholesalers.

Brand: RobertshawSKU: E103B

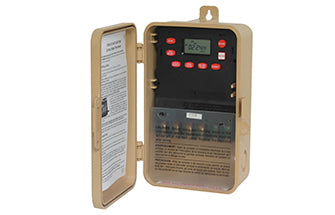

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to E103B

Jump to: Overview & Specifications Reviews

Overview Details for E103B

Electric Timers Series

Automatic input voltage detection without DIP switches
LCD Display
Simple programming with brief easy-to-follow instructions
Power consumption: 6 Watts minimum
Daylight savings time is automatic (can be omitted)
Manual override until the next regularly scheduled On or Off. Automatic operation then resumes or permanently if desired
AM/PM clock format
Power outage back-up with permanent schedule retention
Super-capacitor maintains real-time clock for 100 hours
Includes load status and power failure indicators

Specifications

Item Number	E103B
Brand	Robertshaw
Automatic Operation	6VA Max
Contact Ratings	40 Amps General Purpose; 40 Amps Inductive; 720 VA Pilot Duty; 1 HP (120V AC)
Electrical Rating	120-277V AC
Enclosure	Nema 3R Plastic
Scheduling	Same Everyday
Series Application	24 Hour Electronic Timer
Set Points	20 with 1 minute minimums
Switch	DPST
Temperature Range	-40°F to 149°F (-40°C to 65°C)
