720-474 | GAS VALVE GAS VALVE 7200ERCS | Robertshaw
The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

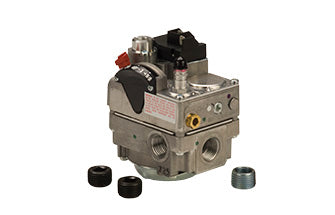

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 720-474
Overview Details for 720-474
720 Series Gas Valves
The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.Features and Benefits- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4” tubing
- Ambient temperature of -40°F to 175°F
- Combination screw/spade terminal type
- Maximum inlet pressure 14” WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, andLP/air mixtures
- Multiple actuators available
- RoHS compliant
Specifications
| Item Number | 720-474 |
| Brand | Robertshaw |
| 110ERCHCSO-2C | ROBERTSHAW |
| 110ERCHCSO-2D | ROBERTSHAW |
| 120-474 | UNI-LINE |
| 36C12-31D | WHITE-RODGERS |
| 36C67-100 | WHITE-RODGERS |
| 36C67-175 | WHITE-RODGERS |
| 36C67-176 | WHITE-RODGERS |
| 36C67-177 | WHITE-RODGERS |
| 36C67-178 | WHITE-RODGERS |
| 36C67-183 | WHITE-RODGERS |
| 36C67-188 | WHITE-RODGERS |
| 36C67-189 | WHITE-RODGERS |
| 6244900 | UNKNOWN |
| 6244912 | UNKNOWN |
| 6245830 | NORDYNE |
| 624583B | NORDYNE |
| 63660 | UNI-LINE |
| 720-C474 | UNI-LINE |
| 7200ERC5-S1 | ROBERTSHAW |
| 7200ERCS-1 | ROBERTSHAW |
| 7200ERCS-2 | ROBERTSHAW |
| 7656A326 | UNKNOWN |
| 7956-336 | COLEMAN / EVCON |
| 7956-336P | YORK INTERNATIONAL |
| 7A3-C4F-005 | ROBERTSHAW |
| 7A3-C4F-024 | ROBERTSHAW |
| 7A3-C4F-025 | ROBERTSHAW |
| 7A3C4F005 | UNKNOWN |
| 7A3C4F025 | EVCON AIR PRO |
| 7A3F8F025 | UNKNOWN |
| 7C3-C4F-005 | ROBERTSHAW |
| 7C3-C4F-023 | ROBERTSHAW |
| 7C3-C4F-024 | ROBERTSHAW |
| 7C3C4F005 | NORDYNE |
| 7C7-C4F-005 | ROBERTSHAW |
| 7C7-F8F-055 | MILLER HEATING |
| 7C7G8F055 | NORDYNE |
| 7C7G8F545 | UNKNOWN |
| Capacity | 150;000 BTU |
| Comments | Step-opening for mobile home |
| Electrical Rating | 24V AC @ 0.5 Amps; 50/60 Hz |
| Factory Part Number | 7200ERCS |
| Inlet Size | 1/2" |
| L36-408 | JOHNSTONE SUPPLY |
| L37-714 | JOHNSTONE SUPPLY |
| Maximum Inlet Pressure | 14" WC (1/2 PSI) |
| Outlet Size | 1/2" |
| Pilot | 1/4" tubing |
| Pressure Regulation | 3.5" WC Natural or 11.0" LP Convertible Gas |
| Reducer Bushing (NPT) | (1) 1/2" x 3/8" |
| Series Application | 24V Dual |
| Side Outlets | 1/2" FPT with plugs |
| V800C1466 | HONEYWELL |
| V800C1540 | HONEYWELL |
| VR800C1489 | HONEYWELL |
| VR8200C1041 | HONEYWELL |
| VR8200C1082 | HONEYWELL |
| VR8200C1108 | HONEYWELL |
| VR8200P1039 | HONEYWELL |
| VR8200P1047 | HONEYWELL |
| VR8300C2120 | HONEYWELL |
| VR8300C4035 | HONEYWELL |
| VR8300C4100 | HONEYWELL |
| VR8300C4506 | HONEYWELL |
