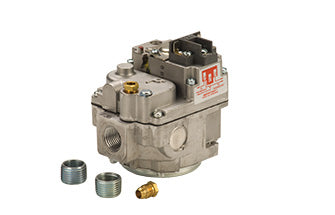

700-513 | GAS VALVE 7010BGVMV,MV VALVE | Robertshaw

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

Brand: RobertshawSKU: 700-513

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-513

Jump to: Overview & Specifications Reviews

Overview Details for 700-513

700 Millivolt Series Gas Valves

700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from smallcapacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Terminal type combination screw/spade
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant

Specifications

Item Number	700-513
Brand	Robertshaw
3 Position Outlet Side (FPT) with Plugs	Straight-Thru
3 Position Outlet Straight-Thru (FPT)	1/2"
304811393	UNI-LINE
305-705-393	ROBERTSHAW
305-705-393A	ROBERTSHAW
305701389	NORDYNE
305705393	UNI-LINE
305811389	UNKNOWN
305811393	UNI-LINE
305815393	UNI-LINE
36C21U-200	WHITE-RODGERS
36C21U-203	WHITE-RODGERS
36C21U-204	WHITE-RODGERS
36C21U-206	WHITE-RODGERS
63296	UNI-LINE
700-517	Robertshaw
7000BGVMV	ROBERTSHAW
7010BGVMV	ROBERTSHAW
B60A94	ITT/GENERAL CONTROL
B60B14	ITT/GENERAL CONTROL
B60G14	ITT/GENERAL CONTROL
B60R54	ITT/GENERAL CONTROL
B60Y14	ITT/GENERAL CONTROL
B60Y54	ITT/GENERAL CONTROL
B60Y84	ITT/GENERAL CONTROL
B60Y84A102	ITT/GENERAL CONTROL
B60Y84A112	ITT/GENERAL CONTROL
B60Y84H103	ITT/GENERAL CONTROL
B60Y85	ITT/GENERAL CONTROL
B60Y94	ITT/GENERAL CONTROL
Capacity	240;000 BTU
Comments	Diaphragm valve only-no gas cock or safety magnet.
Electrical Rating	250mV to 750mV
Factory Part Number	7010BGVMV
Inlet Size	1/2"
Pressure Regulation	None
Reducer Bushing (NPT)	2
Series Application	Millivolt Diaphragm/Solenoid Gas Valve
VS8187A 1351	HONEYWELL
VS8187A1005	HONEYWELL
VS8187A1013	HONEYWELL
VS8187A1070	HONEYWELL
VS8187A1088	HONEYWELL
VS8187A1161	HONEYWELL
VS8187A1211	HONEYWELL
VS8187A1278	HONEYWELL
VS8187A1344	HONEYWELL
VS8187A1351	HONEYWELL
VS8187A1542	HONEYWELL
VS8187A1X3	HONEYWELL
VS8187A1X4	HONEYWELL
VS8187A3X3	HONEYWELL
VS8187A3X4	HONEYWELL
VS8187A7X4	HONEYWELL
VS8187A9X4	HONEYWELL
