700-507 | GAS VALVE 7000BMVR-S7C,MV VALVE | Robertshaw
The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

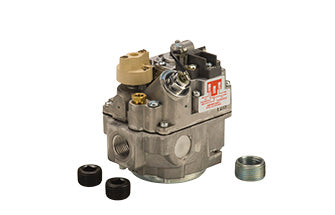

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 700-507
Overview Details for 700-507
700 Millivolt Series Gas Valves
700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits- Gas cock dial marking Off - Pilot - On
- Pilot outlet 1/4” tubing
- Ambient temperature of -40°F to 175°F
- Terminal type combination screw/spade
- Maximum inlet pressure 14” WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- RoHS compliant
Specifications
| Item Number | 700-507 |
| Brand | Robertshaw |
| 003899F | RHEEM |
| 110841-6 | VULCAN HART/P M I |
| 110841-7 | VULCAN HART/P M I |
| 150103-31-01 | HAYWARD COMFORTZONE |
| 1501033201 | HAYWARD COMFORTZONE |
| 1501403101 | HAYWARD COMFORTZONE |
| 222-37786-01 | BRADFORD-WHITE |
| 222-37786-02B | BRADFORD-WHITE |
| 222-37786-04B | BRADFORD-WHITE |
| 3 Position Outlet Side (FPT) with Plugs | Straight-Thru |
| 3 Position Outlet Straight-Thru (FPT) | 3/4" |
| 3200134 | AMERICAN APPL.MFG.CR |
| 3200650 | MOR-FLO INDUST. |
| 342-701-410 | ROBERTSHAW |
| 342-811-410 | ROBERTSHAW |
| 342701410 | UNI-LINE |
| 342811410 | UNI-LINE |
| 343702480 | MOR-FLO INDUST. |
| 343811462 | STATE IND.INC. |
| 343811477 | BRADFORD-WHITE |
| 343811487 | BRADFORD-WHITE |
| 343811494 | HAYWARD COMFORTZONE |
| 343812492 | HAYWARD COMFORTZONE |
| 359-701-410 | ROBERTSHAW |
| 359-701-430 | ROBERTSHAW |
| 359-701-443 | ROBERTSHAW |
| 359-702-447 | ROBERTSHAW |
| 359-705-444 | ROBERTSHAW |
| 359701410 | RAYPAK INC. |
| 359701443 | PMI |
| 359702447 | WELLS MFG. |
| 359811410 | RAYPAK INC. |
| 359811430 | WELLS MFG. |
| 359811430A | WELLS MFG. |
| 359811443 | PMI |
| 359811451 | PACFAB |
| 359812447 | WELLS MFG. |
| 36C04U-307 | WHITE-RODGERS |
| 377811462 | UNKNOWN |
| 37786-04 | BRADFORD-WHITE |
| 37786-04B | BRADFORD-WHITE |
| 38E03 | LENNOX INDUSTRIES |
| 415-701-413 | ROBERTSHAW |
| 42193 | WELLS MFG. |
| 42205 | WELLS MFG. |
| 434-701-422 | ROBERTSHAW |
| 434-702-429 | ROBERTSHAW |
| 449811422 | RHEEM |
| 471192 | PACFAB |
| 4E1701464 | RAYPAK INC. |
| 4E1701474 | HAYWARD COMFORTZONE |
| 4E1702467 | HAYWARD COMFORTZONE |
| 4E1711494 | UNKNOWN |
| 4E1712493 | UNKNOWN |
| 4E1811474 | TELEDYNE STILL/LAARS |
| 4E1811494 | UNKNOWN |
| 4E1812467 | HAYWARD COMFORTZONE |
| 4E1812493 | HAYWARD COMFORTZONE |
| 4F1701474 | HAYWARD COMFORTZONE |
| 4F1811464 | UNKNOWN |
| 4F1811474 | UNKNOWN |
| 4F1812467 | UNKNOWN |
| 600945 | RAYPAK INC. |
| 63287 | UNI-LINE |
| 700-C508 | UNI-LINE |
| 7000AMVR-S7C | ROBERTSHAW |
| 7000BMVR-LP-S7C | STATE IND.INC. |
| 7000BMVR-S7C | ROBERTSHAW |
| 7201360 | STATE IND.INC. |
| 7201370 | STATE IND.INC. |
| 8070309 | FRYMASTER |
| 8070760 | FRYMASTER |
| 8071020 | FRYMASTER |
| 8072426 | FRYMASTER |
| Capacity | 240;000 BTU |
| Comments | Slow opening feature for soft ignition |
| Electrical Rating | 250mV to 750mV |
| Factory Part Number | 7000BMVR-S7C |
| Inlet Size | 1/2" |
| P214900 | WILLIAMS FURNACE |
| P215000 | WILLIAMS FURNACE |
| Pressure Regulation | 3.5" WC Natural Gas |
| Reducer Bushing (NPT) | 1 |
| Series Application | Millivolt Diaphragm/Solenoid Gas Valve |
