Documents: 700-505

Robertshaw 2024 HVAC Heating Catalog 700 Series Gas Heating Controls Manual Robertshaw Commercial Catalog 150-2634 More Info

700-505 | GAS VALVE 7000BMV,MV VALVE | Robertshaw

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

Brand: RobertshawSKU: 700-505

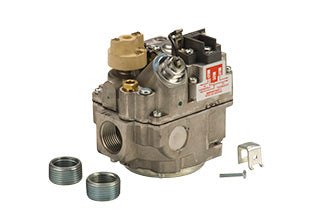

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-505

Jump to: Overview & Specifications Reviews

Overview Details for 700-505

700 Millivolt Series Gas Valves

700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Terminal type combination screw/spade
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, andLP/air mixtures
RoHS compliant

Specifications

Item Number	700-505
Brand	Robertshaw
07676	FRYMASTER
13419-02	DCS
3 Position Outlet Side (FPT) with Plugs	Straight-Thru
3 Position Outlet Straight-Thru (FPT)	3/4"
343-701-402	ROBERTSHAW
343-705-401	ROBERTSHAW
343-705-401A	ROBERTSHAW
343-815-401	ROBERTSHAW
343-815-401A	ROBERTSHAW
343705401	UNKNOWN
343815400	UNI-LINE
343815401	UNKNOWN
359705401	AMERICAN CATERING
359815401	AMERICAN CATERING
63285	UNI-LINE
7000BMV	ROBERTSHAW
7676	UNKNOWN
B107RF01	ITT/GENERAL CONTROL
B67ABA90	ITT/GENERAL CONTROL
B67AF46	ITT/GENERAL CONTROL
B67AF85	ITT/GENERAL CONTROL
B69A05	ITT/GENERAL CONTROL
B69A33	ITT/GENERAL CONTROL
Capacity	300;000 BTU
Electrical Rating	250mV to 750mV
Factory Part Number	7000BMV
Inlet Size	3/4"
Pressure Regulation	None
Reducer Bushing (NPT)	2
Series Application	Millivolt Diaphragm/Solenoid Gas Valve
