Documents: 700-504

Robertshaw 2024 HVAC Heating Catalog 700 Series Gas Heating Controls Manual Robertshaw Commercial Catalog 150-2634 More Info

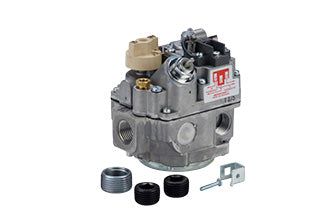

700-504 | GAS VALVE 7000BMVR,MV VALVE | Robertshaw

700 Series - Millivolt The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

Brand: RobertshawSKU: 700-504

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-504

Jump to: Overview & Specifications Reviews

Overview Details for 700-504

700 Millivolt Series Gas Valves

700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Terminal type combination screw/spade
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant

Specifications

Item Number	700-504
Brand	Robertshaw
10-5791	MARKET FORGE
112231-1	VULCAN HART/P M I
1419972	UNKNOWN
144-701-120	ROBERTSHAW
1896	DEAN
2022-141	REPCO
22110	CLEVELAND/RANGE
3 Position Outlet Side (FPT) with Plugs	1/2"
3 Position Outlet Straight-Thru (FPT)	3/4"
342-701-400	ROBERTSHAW
342-701-404	ROBERTSHAW
345-701-402	ROBERTSHAW
345-811-402	ROBERTSHAW
345701402	STATE IND.INC.
345811404	UNI-LINE
359-701-409	ROBERTSHAW
359-705-400	ROBERTSHAW
359811404	BAKERS PRIDE
3644U-228	WHITE-RODGERS
3661U-228	WHITE-RODGERS
3661U-288	WHITE-RODGERS
3661U-508	WHITE-RODGERS
3661U-528	WHITE-RODGERS
3661U-588	WHITE-RODGERS
3666U-228	WHITE-RODGERS
3666U-288	WHITE-RODGERS
36C03U-100	WHITE-RODGERS
36C03U-102	WHITE-RODGERS
36C03U-210	WHITE-RODGERS
36C03U-218	WHITE-RODGERS
36C03U-300	WHITE-RODGERS
36C03U-310	WHITE-RODGERS
36C03U-330	WHITE-RODGERS
36C03U-333	WHITE-RODGERS
36C03U-350	WHITE-RODGERS
36C03U300	WHITE-RODGERS
36C03U333	WHITE-RODGERS
36C10U-100	WHITE-RODGERS
36C10U-200	WHITE-RODGERS
36C10U-276	WHITE-RODGERS
410841-6	HOBART CORP
448-701-407	ROBERTSHAW
448-701-442	ROBERTSHAW
63284	UNI-LINE
700-C504	UNI-LINE
7000BMVR	ROBERTSHAW
80-0016-35-0057-00	PORTLAND WILLAMETTE
80005-02	THERMATEK
807-1604	WALKERS GAS AND ELECTRIC
8071604	WALKERS GAS AND ELECTRIC
B62	ITT/GENERAL CONTROL
B65	ITT/GENERAL CONTROL
B67RA12	ITT/GENERAL CONTROL
B67RB09	ITT/GENERAL CONTROL
B67RB124	ITT/GENERAL CONTROL
B67RB141	ITT/GENERAL CONTROL
B67RB16	ITT/GENERAL CONTROL
B67RB83	ITT/GENERAL CONTROL
B67RB88	ITT/GENERAL CONTROL
B67RB	ITT/GENERAL CONTROL
B67RBA107	ITT/GENERAL CONTROL
B67RBA121	ITT/GENERAL CONTROL
Capacity	240;000 BTU
Comments	Coaxial thermopile and 2 lead thermopile can be used
CS5134A1036	HONEYWELL
Electrical Rating	250mV to 750mV
Factory Part Number	7000BMVR
GA-119	CONSOLIDATED COMM.CO
Inlet Size	1/2"
L37-260	JOHNSTONE SUPPLY
MR18A02	ITT/GENERAL CONTROL
MR18R06	ITT/GENERAL CONTROL
MR57AB22	ITT/GENERAL CONTROL
Pressure Regulation	3.5" WC Natural Gas
Reducer Bushing (NPT)	1
Series Application	Millivolt Diaphragm/Solenoid Gas Valve
VS8133A1009	HONEYWELL
VS8133A1017	HONEYWELL
VS8133B1008	HONEYWELL
VS8133B1016	HONEYWELL
VS8138A1008	HONEYWELL
VS8138A1016	HONEYWELL
VS8138A1032	HONEYWELL
VS8138A1149	HONEYWELL
VS8138F1003	HONEYWELL
VS8167A1007	HONEYWELL
VS8167A1015	HONEYWELL
VS8167A1023	HONEYWELL
VS8167A1031	HONEYWELL
VS8167A1049	HONEYWELL
VS8167A1056	HONEYWELL
VS8167A1064	HONEYWELL
VS8167A1072	HONEYWELL
VS8167A1080	HONEYWELL
VS8167A1098	HONEYWELL
VS8167A1106	HONEYWELL
VS8167A1114	HONEYWELL
VS8167A1130	HONEYWELL
VS8167A1148	HONEYWELL
VS8167A1X21A	HONEYWELL
VS8167A1X4B	HONEYWELL
VS8167A2X21A	HONEYWELL
VS8167A2X21C	HONEYWELL
VS8167A2X4A	HONEYWELL
VS8167A3X4A	HONEYWELL
VS8167A3X4B	HONEYWELL
VS8167A4X21B	HONEYWELL
VS8167A4X3B	HONEYWELL
VS8167A4X4A	HONEYWELL
VS8167A5X4A	HONEYWELL
VS8167A6X4A	HONEYWELL
VS8167D1004	HONEYWELL
VS8167D1012	HONEYWELL
VS8167D1020	HONEYWELL
VS8167D1038	HONEYWELL
VS8167D1046	HONEYWELL
VS8167D1053	HONEYWELL
VS8167D1061	HONEYWELL
VS8167D1079	HONEYWELL
VS8167D1087	HONEYWELL
VS8167D1095	HONEYWELL
VS8167D1103	HONEYWELL
VS8167D1111	HONEYWELL
VS8167D1129	HONEYWELL
VS8167D1137	HONEYWELL
VS8178A1004	HONEYWELL
VS8178A1012	HONEYWELL
VS8178A1038	HONEYWELL
VS8178A1046	HONEYWELL
VS8178A1053	HONEYWELL
VS8178A1061	HONEYWELL
VS8178A1079	HONEYWELL
VS8178A1087	HONEYWELL
VS8178A1095	HONEYWELL
VS8178A1103	HONEYWELL
VS8178A1129	HONEYWELL
VS8178C1002	HONEYWELL
VS8178C1010	HONEYWELL
VS8178C1044	HONEYWELL
VS8179A1002	HONEYWELL
VS8179A1028	HONEYWELL
VS8179A1135	HONEYWELL
VS8179A1168	HONEYWELL
VS8179A1184	HONEYWELL
VS8179A1192	HONEYWELL
VS8179A1259	HONEYWELL
VS8179A1275	HONEYWELL
VS8179A1283	HONEYWELL
VS8179A1291	HONEYWELL
VS8179A1309	HONEYWELL
VS8179A1317	HONEYWELL
VS8179A1333	HONEYWELL
VS8179A1341	HONEYWELL
VS8179A1366	HONEYWELL
VS8179A1374	HONEYWELL
VS8179A1408	HONEYWELL
VS8179A1416	HONEYWELL
VS8179A1432	HONEYWELL
VS8179A1440	HONEYWELL
VS8179C1000	HONEYWELL
VS8179C1018	HONEYWELL
VS8179C1042	HONEYWELL
VS8179C1083	HONEYWELL
VS8179C1166	HONEYWELL
VS8179C1174	HONEYWELL
VS820A1013	HONEYWELL
VS820A1062	HONEYWELL
VS820A1088	HONEYWELL
VS820A1112	HONEYWELL
VS820Q1026	HONEYWELL
VS821A1004	HONEYWELL
VS821B1002	HONEYWELL
VS8233A1007	HONEYWELL
VS8233A1023	HONEYWELL
VS8233A1031	HONEYWELL
VS8233A1049	HONEYWELL
VS8233A1056	HONEYWELL
VS8233A1064	HONEYWELL
VS8233A1072	HONEYWELL
VS8233A1080	HONEYWELL
VS8233A1106	HONEYWELL
VS8233A1114	HONEYWELL
VS8233A1122	HONEYWELL
VS8233A1130	HONEYWELL
VS8233C1005	HONEYWELL
VS8233C1013	HONEYWELL
VS8233D1004	HONEYWELL
VS8233D1012	HONEYWELL
VS8233E1003	HONEYWELL
VS8238A1022	HONEYWELL
VS8279A1000	HONEYWELL
VS8279A1018	HONEYWELL
VS8279A1034	HONEYWELL
VS8279A1042	HONEYWELL
VS8279A1067	HONEYWELL
VS8279A1075	HONEYWELL
VS8279A1083	HONEYWELL
VS8279A1117	HONEYWELL
VS8279A1133	HONEYWELL
VS8279A1141	HONEYWELL
VS8279A1158	HONEYWELL
VS8279A1166	HONEYWELL
VS8295A1006	HONEYWELL
