Documents: 700-205

Robertshaw 2024 HVAC Heating Catalog 700 Series Gas Heating Controls Manual Robertshaw Commercial Catalog 150-2634 More Info

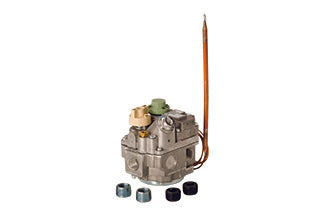

700-205 | GAS VALVE 7000ASTR,HYD. VALVE | Robertshaw

700 Series - Snap-Throttle Hydraulic The Robertshaw® 700 Series Snap-Throttle Hydraulic Combination Gas Valves are thermostatically operated by a remote temperature sensing bulb. Models are available with single capillary or remote dial-in snap-action and snap-throttle types. Valves can be mounted in any position except upside down.

Brand: RobertshawSKU: 700-205

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-205

Jump to: Overview & Specifications Reviews

Overview Details for 700-205

700 Series Gas Valves

700 Series - Snap-Throttle HydraulicThe Robertshaw® 700 Series Snap-Throttle Hydraulic Combination Gas Valves are thermostatically operated by a remote temperature sensing bulb. Models are available with single capillary or remote dial-in snap-action and snap-throttle types. Valves can be mounted in any position except upside down.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of 32°F to 175°F
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

Specifications

Item Number	700-205
Brand	Robertshaw
1000-204	UNI-LINE
1000206	UNI-LINE
1050-204	UNI-LINE
1050206	UNI-LINE
106-211-011	ROBERTSHAW
106-211-053	ROBERTSHAW
107-211-000	ROBERTSHAW
107-211-009	ROBERTSHAW
107-211-011	ROBERTSHAW
107-211-028	ROBERTSHAW
107-211-034	ROBERTSHAW
107-211-037	ROBERTSHAW
107-211-040	ROBERTSHAW
107-211-053	ROBERTSHAW
107-211-113	ROBERTSHAW
107-211-115	ROBERTSHAW
107-211-125	ROBERTSHAW
107-211-132	ROBERTSHAW
107-221-009	ROBERTSHAW
107-221-096	ROBERTSHAW
107-221-116	ROBERTSHAW
109-211-006	ROBERTSHAW
109-211-091	ROBERTSHAW
109-221-011	ROBERTSHAW
109-221-028	ROBERTSHAW
109-221-039	ROBERTSHAW
111-211-000	ROBERTSHAW
111-211-011	ROBERTSHAW
111-211-028	ROBERTSHAW
111-221-000	ROBERTSHAW
111-221-028	ROBERTSHAW
111-221-039	ROBERTSHAW
111-221-049	ROBERTSHAW
113-211-115	ROBERTSHAW
113-211-129	ROBERTSHAW
116-221-066	ROBERTSHAW
1200-205	UNI-LINE
133-211-039	ROBERTSHAW
133-211-057	ROBERTSHAW
135-211-085	ROBERTSHAW
135-211-150	ROBERTSHAW
135-221-096	ROBERTSHAW
3 Position Outlet Side (FPT) with Plugs	1/2"
315-211-005	ROBERTSHAW
315-211-034	ROBERTSHAW
318-211-003	ROBERTSHAW
318-211-005	ROBERTSHAW
318-211-022	ROBERTSHAW
318-211-039	ROBERTSHAW
318-211-042	ROBERTSHAW
318-211-058	ROBERTSHAW
318-211-061	ROBERTSHAW
318-221-022	ROBERTSHAW
318-221-034	ROBERTSHAW
318-221-038	ROBERTSHAW
318-221-068	ROBERTSHAW
318-224-006	ROBERTSHAW
320-211-036	ROBERTSHAW
320-211-165	ROBERTSHAW
320-385-613	ROBERTSHAW
321-221-034	ROBERTSHAW
321-221-036	ROBERTSHAW
321-231-003	ROBERTSHAW
324-221-014	ROBERTSHAW
324221014	UNI-LINE
36C09-100	WHITE-RODGERS
36C09-102	WHITE-RODGERS
36C09-192	WHITE-RODGERS
36C09-195	WHITE-RODGERS
36C09-200	WHITE-RODGERS
36C09-211	WHITE-RODGERS
36C09100	WHITE-RODGERS
36C09102	WHITE-RODGERS
36C09192	WHITE-RODGERS
36C09195	WHITE-RODGERS
36C09200	WHITE-RODGERS
36C09211	WHITE-RODGERS
4C2211034	UNKNOWN
4C2211039	UNKNOWN
4C2211114	BIG DUTCHMAN
4C2211189	EMPIRE COMFORT SYS.
4D3-211-197	ROBERTSHAW
4D3211197	PERFECTION SCHWANK
4E2211023	BIG DUTCHMAN
4E5-221-014	ROBERTSHAW
4E5221014	UNI-LINE
63153	UNI-LINE
700-C205	UNI-LINE
7000ASTR-3	ROBERTSHAW
81046	UNITED STATES STOVE
8362250	ROBERTSHAW
8472119	ROBERTSHAW
99791739	WHIRLPOOL
9990-072	UNI-LINE
9990-075	UNI-LINE
B110406-G1	PERFECTION STOVE
Capacity	100;000 BTU
Capillary Length	36"
Dial Temperature	58°F to 90°F
Factory Part Number	7000ASTR-3
Inlet Size	1/2"
L36-402	JOHNSTONE SUPPLY
Maximum Inlet Pressure	14" WC (1/2 PSI)
Pilot	1/4" tubing
Pressure Regulation	3.5" WC Natural Gas
Reducer Bushing (NPT)	(2) 1/2" x 3/8"
Remote Temperature	45°F to 95°F
Series Application	Snap-Throttle Hydraulic Gas Valve
TV14A1G22B12A15	ITT/GENERAL CONTROL
TV14A1G99B12	ITT/GENERAL CONTROL
TV14A3G20B12A13	ITT/GENERAL CONTROL
TV14A3G99B12	ITT/GENERAL CONTROL
TV17RA08	ITT/GENERAL CONTROL
TV17RA0B	ITT/GENERAL CONTROL
TV17RA18	ITT/GENERAL CONTROL
TV17RA22	ITT/GENERAL CONTROL
TV17RA47	ITT/GENERAL CONTROL
TV17RA55	ITT/GENERAL CONTROL
TV17RB02	ITT/GENERAL CONTROL
TV17RB09	ITT/GENERAL CONTROL
TV17RB25	ITT/GENERAL CONTROL
TV17RB27	ITT/GENERAL CONTROL
TV17RB30	ITT/GENERAL CONTROL
TV17RB37	ITT/GENERAL CONTROL
TV17RB39	ITT/GENERAL CONTROL
TV17RB44	ITT/GENERAL CONTROL
TV17RB49	ITT/GENERAL CONTROL
TV17RB51	ITT/GENERAL CONTROL
TV17RB52	ITT/GENERAL CONTROL
V500B1174	HONEYWELL
V5118A1009	HONEYWELL
V5118A1025	HONEYWELL
V5118A1033	HONEYWELL
V5150A1008	HONEYWELL
V5150A1016	HONEYWELL
V5150A1024	HONEYWELL
V5150A1032	HONEYWELL
V5150A1040	HONEYWELL
V5150A1057	HONEYWELL
V5150A1065	HONEYWELL
V5150A1073	HONEYWELL
V5150A1081	HONEYWELL
V5150A1099	HONEYWELL
V5150A1107	HONEYWELL
V5150A1115	HONEYWELL
V5150A1C21B	HONEYWELL
V5150A1F21B	HONEYWELL
V5150A1F3B	HONEYWELL
V5150A2C21D	HONEYWELL
V5150A2F21B	HONEYWELL
V5150A2F3B	HONEYWELL
V5150A4F3B	HONEYWELL
V5189A1003	HONEYWELL
V5234A1008	HONEYWELL
V5234A1016	HONEYWELL
V5234A1024	HONEYWELL
V5234A1032	HONEYWELL
V5234A1040	HONEYWELL
V5234A1057	HONEYWELL
V5234B1006	HONEYWELL
V5234B1014	HONEYWELL
V5234B1055	HONEYWELL
V5236A1006	HONEYWELL
V5236A1048	HONEYWELL
V5236A1063	HONEYWELL
V5236A1097	HONEYWELL
V5236A1105	HONEYWELL
V5236A1113	HONEYWELL
V5236A1121	HONEYWELL
V5236A1139	HONEYWELL
V5236A1154	HONEYWELL
V5266E1223	HONEYWELL
V5267A1008	HONEYWELL
V5267A1016	HONEYWELL
V5267E1009	HONEYWELL
V5267E1066	HONEYWELL
V5267E1157	HONEYWELL
V5267E1215	HONEYWELL
V5267E1223	HONEYWELL
V5267E1233	HONEYWELL
V5267E1926	HONEYWELL
V5267E1934	HONEYWELL
V5267E1967	HONEYWELL
V5267E1975	HONEYWELL
V5267E1983	HONEYWELL
V5267E1991	HONEYWELL
V5267E2007	HONEYWELL
V5267E2015	HONEYWELL
V5267E2049	HONEYWELL
V5267E2056	HONEYWELL
V5267E2171	HONEYWELL
V5267E2197	HONEYWELL
V5267E2205	HONEYWELL
V5267E2213	HONEYWELL
V5267F1189	HONEYWELL
V5267F1197	HONEYWELL
V5267F1247	HONEYWELL
V5267R1001	HONEYWELL
V5267R1019	HONEYWELL
V5267R1027	HONEYWELL
V5267R1035	HONEYWELL
V5267R1043	HONEYWELL
V5272A1001	HONEYWELL
V5272B1009	HONEYWELL
V5272B1017	HONEYWELL
V5272B1070	HONEYWELL
V5272C1007	HONEYWELL
V5272D1005	HONEYWELL
V5272E1002	HONEYWELL
V5272E1028	HONEYWELL
V5272E1036	HONEYWELL
V5272E1051	HONEYWELL
V5272E1135	HONEYWELL
V5272E1223	HONEYWELL
V5272F1026	HONEYWELL
V5272F1075	HONEYWELL
V5272F1083	HONEYWELL
V5272F1133	HONEYWELL
V5272F1208	HONEYWELL
V5272F1224	HONEYWELL
V5500A1039	HONEYWELL
V5500B1003	HONEYWELL
V5500B1086	HONEYWELL
