Documents: 5300-735

Datasheet Datasheet 5330 & 5380 Series Commercial and Domestic Electric Thermostats Manual 4590 Slip-fit® Dial Kits Manual K and S Series / 5300 Series Electric Thermostats Sell Sheet 5320 Series Wiring Information Robertshaw Commercial Catalog 150-2634 More Info

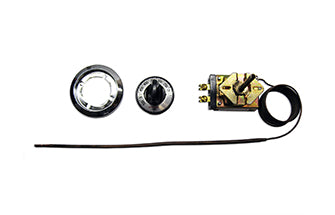

5300-735 | ELECTRIC COOKING CONTROL KXP-149-60 | Robertshaw

The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.

Brand: RobertshawSKU: 5300-735

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5300-735

Jump to: Overview & Specifications Reviews

Overview Details for 5300-735

5300 Series Electric Thermostats

Features and Benefits

KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
Rugged and compact design for versatility and long life
Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
Plastic coating available for protection against moisture, dust, etc. (most models)
Dials of heat resistant plastic available
RX millivolt models with hermetically sealed reed switch
Stem flat in down position
Ambient temperature 200°F (93°C)

Specifications

Item Number	5300-735
Brand	Robertshaw
111506-3	HOBART CORP
116-1452	SOUTH BEND RANGE
24146-2	HOBART CORP
24162	UNI-LINE
411506-7	PRE-MARK INTL(P M I FOOD EQUIP)
480-1	MARTIN OVEN
5300-709	UNI-LINE
5300-782	UNI-LINE
5330-002	UNI-LINE
7795	WELBILT
9991-053	UNI-LINE
9991-197	UNI-LINE
Bulb Size	3/16" x 11-5/8" Nickel
Capillary Length	60"
Dial Type	4-Way
E-109	CONSOLIDATED COMM.CO
EA17-34-36	ROBERTSHAW
EA17-48-42	ROBERTSHAW
EA17-52-36	ROBERTSHAW
EA17-58-60	ROBERTSHAW
EA17-C15-18	HART
EA17P-63-48	ROBERTSHAW
EA17P-63-60	ROBERTSHAW
EA17P-64-48	ROBERTSHAW
EA17P-71-37	ROBERTSHAW
Electrical Rating	120/277V AC; 50VA Pilot Duty
F16-611	JOHNSTONE SUPPLY
Factory Part Number	KXP-149
For OEM/Model Series	Down
KX-1-48	ROBERTSHAW
KX-107-36	ROBERTSHAW
KX-107-48	ROBERTSHAW
KX-174-36	INVENSYS APPLIANCE CONTROLS
KX-180-36	ROBERTSHAW
KX-233-24	ROBERTSHAW
KX-380-48	NOVA CONTROLS
KX-435-18	UNI-LINE
KX-68-36	ROBERTSHAW
KX-73-48	ROBERTSHAW
KX-96-48	ROBERTSHAW
KXP-149-48	ROBERTSHAW
KXP-149-60	ROBERTSHAW
KXP-235-36	ROBERTSHAW
Mechanical Differential	12°F
Mounting Type	#6; Kit
Series Application	KX Series Pilot Duty Model Uni-Kit
Stem Length	2" Kit
Stuffing Box	NA
Temperature Range	175°F to 550°F (79.4°C to 287.7°C)
