Documents: 5300-671

Datasheet Datasheet 5330 & 5380 Series Commercial and Domestic Electric Thermostats Manual 4590 Slip-fit® Dial Kits Manual K and S Series / 5300 Series Electric Thermostats Sell Sheet Robertshaw Commercial Catalog 150-2634 More Info

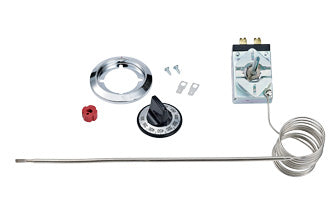

5300-671 | ELECTRIC COOKING CONTROL SP-200-60 | Robertshaw

The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.

Brand: RobertshawSKU: 5300-671

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5300-671

Jump to: Overview & Specifications Reviews

Overview Details for 5300-671

5300 Series Electric Thermostats

KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
Rugged and compact design for versatility and long life
Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
Plastic coating available for protection against moisture, dust, etc. (most models)
Dials of heat resistant plastic available
RX millivolt models with hermetically sealed reed switch
Stem flat in down position
Ambient temperature 200°F (93°C)

Specifications

Item Number	5300-671
Brand	Robertshaw
008-5189	PERKINS; ELMER
24114	UNI-LINE
25123-23	MOFFATS
31103-17	VULCAN HART/P M I
38458	WELLS MFG.
4118B8705	MCGRAW/EDISON
5300-161	UNI-LINE
5300-166	UNI-LINE
5300-C114	UNI-LINE
9990-228	UNI-LINE
9990-265	UNI-LINE
9991-525	UNI-LINE
9991-689	UNI-LINE
Bulb Size	3/16" x 12-1/4" Nickel
Capillary Length	60"
Comments	1-10 Dial Uni-Kit
Dial Type	4-Way
EA3-113-60	ROBERTSHAW
EA3-241-18	ROBERTSHAW
EA3-244-18	ROBERTSHAW
EA3-258-24	ROBERTSHAW
EA3-306-36	ROBERTSHAW
EA3-306-48	ROBERTSHAW
EA3-335-48	ROBERTSHAW
EA3-361-48	ROBERTSHAW
EA3-373-24	ROBERTSHAW
EA3-48-42	ROBERTSHAW
EA5-117-48	ROBERTSHAW
EA7-12-24	ROBERTSHAW
EA7-15-24	ROBERTSHAW
Electrical Rating	30 Amps @ 277V AC\|20 Amps @ 480V AC\|18 FLA; 72 LRA @ 250V AC\|125 VA Pilot Duty at 120/277 Volts
F16-615	JOHNSTONE SUPPLY
Factory Part Number	SP-200
For OEM/Model Series	Down
K-1145-48	MOFFATS
K-1145-60	ROBERTSHAW
K-144-84	ROBERTSHAW
K-17-24	ROBERTSHAW
K-27-24	ROBERTSHAW
K-27-36	ROBERTSHAW
K-27-42	ROBERTSHAW
K-27-48	ROBERTSHAW
K-312-48	ROBERTSHAW
K-322-18	ROBERTSHAW
K-322-24	ROBERTSHAW
K-43-48	ROBERTSHAW
K-480-48	ROBERTSHAW
K-495-36	ROBERTSHAW
K-614-60	ROBERTSHAW
K-65-48	ROBERTSHAW
K-756-144	ROBERTSHAW
K-776-48	ROBERTSHAW
Mechanical Differential	12°F
Mounting Type	#6; Kit
N15-3005-3	ITT/VULCAN ELECTRIC
P13848-48	ROBERTSHAW
P13913-60	ROBERTSHAW
P14741-18	ROBERTSHAW
P14744-18	ROBERTSHAW
P14758-24	ROBERTSHAW
S-17-24	ROBERTSHAW
S-204-12	ROBERTSHAW
S-28-36	ROBERTSHAW
S-28-42	ROBERTSHAW
S-28-48	ROBERTSHAW
S-303-36	ROBERTSHAW
S-39-60	ROBERTSHAW
Series Application	SP Model Uni-Kit
SP-200-60	ROBERTSHAW
Stem Length	2" Kit
Stuffing Box	NA
Temperature Range	300°F to 700°F (148.8°C to 371.1°C)
Z35129-24	ROBERTSHAW
Z35129	ROBERTSHAW
Z43129-24	ROBERTSHAW
Z43529-24	ROBERTSHAW
Z43529	ROBERTSHAW
Z43656-42	ROBERTSHAW
Z43656	ROBERTSHAW
Z48529-24	ROBERTSHAW
Z48529	ROBERTSHAW
Z48656-42	ROBERTSHAW
Z48656	ROBERTSHAW
