Documents: 5300-618

Datasheet Datasheet 5330 & 5380 Series Commercial and Domestic Electric Thermostats Manual 4590 Slip-fit® Dial Kits Manual K and S Series / 5300 Series Electric Thermostats Sell Sheet Robertshaw Commercial Catalog 150-2634 More Info

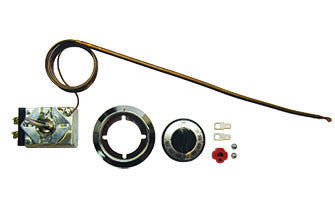

5300-618 | ELECTRIC COOKING CONTROL SP-188-60 | Robertshaw

The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.

Brand: RobertshawSKU: 5300-618

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5300-618

Jump to: Overview & Specifications Reviews

Overview Details for 5300-618

5300 Series Electric Thermostats

KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
Rugged and compact design for versatility and long life
Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
Plastic coating available for protection against moisture, dust, etc. (most models)
Dials of heat resistant plastic available
RX millivolt models with hermetically sealed reed switch
Stem flat in down position
Ambient temperature 200°F (93°C)

Specifications

Item Number	5300-618
Brand	Robertshaw
1-1190	LINCOLN MFG.CO.
20120	GEMLINE
24040	UNI-LINE
24049	UNI-LINE
2662A8701	MCGRAW/EDISON
40282	WELLS MFG.
40435	WELLS MFG.
40892	WELLS MFG.
5300-177	UNI-LINE
5300-610	UNI-LINE
54B700950P1	G.E. (General Electric)
9990-503	UNI-LINE
9990-682	UNI-LINE
9990-903	UNI-LINE
9990-954	UNI-LINE
9990-961	UNI-LINE
9991-157	UNI-LINE
9991-341	UNI-LINE
9998-559	ROBERTSHAW
B712B8721	MCGRAW/EDISON
Bulb Size	3/16" x 11-5/8" Nickel
C714B8717	MCGRAW/EDISON
Capillary Length	60"
Comments	1-10 Dial Uni-Kit
D705A8723	MCGRAW/EDISON
D705A8739	MCGRAW/EDISON
D7158B721	MCGRAW/EDISON
D715B8727	MCGRAW/EDISON
Dial Type	4-Way
EA3-144-24	ROBERTSHAW
EA3-213-60	ROBERTSHAW
EA3-391-36	ROBERTSHAW
EA3-482-12	ROBERTSHAW
EA3-482-48	ROBERTSHAW
Electrical Rating	30 Amps @ 277V AC\|20 Amps @ 480V AC\|18 FLA; 72 LRA @ 250V AC\|125 VA Pilot Duty at 120/277 Volts
F16-603	JOHNSTONE SUPPLY
Factory Part Number	SP-191
For OEM/Model Series	Down
G1-1062	RANCO
G1-1071	RANCO
G1-2590	RANCO
K-131-30	ROBERTSHAW
K-155-24	ROBERTSHAW
K-155-36	ROBERTSHAW
K-264-24	ROBERTSHAW
K-264-60	ROBERTSHAW
K-285-24	ROBERTSHAW
K-291-48	ROBERTSHAW
K-303-60	ROBERTSHAW
K-35-12	ROBERTSHAW
K-35-24	ROBERTSHAW
K-35-36	ROBERTSHAW
K-456-24	ROBERTSHAW
K-473-36	ROBERTSHAW
K-474-12	ROBERTSHAW
K-615-60	ROBERTSHAW
K-85-24	ROBERTSHAW
K-85-36	ROBERTSHAW
K-975-36	ROBERTSHAW
LP651	GEMLINE
Mechanical Differential	12°F
Mounting Type	#6; Kit
P13270-24	KING STOVE & RANGE
P14762-60	ROBERTSHAW
S-100-48	ROBERTSHAW
S-158-24	ROBERTSHAW
S-158-48	ROBERTSHAW
S-173-48	ROBERTSHAW
S-173-60	ROBERTSHAW
S-211-60	ROBERTSHAW
S-334-36	ROBERTSHAW
S-35-36	ROBERTSHAW
S-35	ROBERTSHAW
S-412-36	UNKNOWN
S-99-24	ROBERTSHAW
S-99-36	ROBERTSHAW
Series Application	SP Model Uni-Kit
SP-188-60	ROBERTSHAW
SP-191-60	ROBERTSHAW
Stem Length	2" Kit
Temperature Range	100°F to 450°F (37.7°C to 232.2°C)
Z-43512	ROBERTSHAW
Z35112	ROBERTSHAW
Z43112-36	ROBERTSHAW
Z43112	ROBERTSHAW
Z43512-36	ROBERTSHAW
Z43512	ROBERTSHAW
Z48512-36	ROBERTSHAW
Z48512	ROBERTSHAW
