5300-612 | ELECTRIC COOKING CONTROL SP-184-60 | Robertshaw

The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snapaction mechanism is precise and reliable. This direct acting series of thermostats is suitable for the commercial cooking industry.

Brand: RobertshawSKU: 5300-612

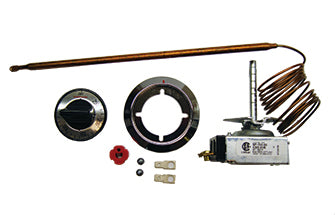

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 5300-612

Jump to: Overview & Specifications Reviews

Overview Details for 5300-612

5300 Series Electric Thermostats

KN models are NAK filled diastats with temperature ranges up to 975°F (524°C)
Rugged and compact design for versatility and long life
Bulb and capillary available in copper, nickel plated copper and stainless steel (most models)
Plastic coating available for protection against moisture, dust, etc. (most models)
Dials of heat resistant plastic available
RX millivolt models with hermetically sealed reed switch
Stem flat in down position
Ambient temperature 200°F (93°C)

Specifications

Item Number	5300-612
Brand	Robertshaw
202-0-1-20	WATLOW
202-0-1-22	WATLOW
202-0-1-2	WATLOW
202-0-1-4	WATLOW
235-101-2	MCGRAW/EDISON
235-101-7	MCGRAW/EDISON
24042	UNI-LINE
300-501476-002	CHROMALOX
37T-1054-1	ELECTRO-THERM
37T-1054-2	ELECTRO-THERM
37T-1056-1	ELECTRO-THERM
37T-1056-2	ELECTRO-THERM
5300-042	UNI-LINE
5300-051	UNI-LINE
5300-052	UNI-LINE
848-7	CRESCENT METAL
848-8	CRESCENT METAL
9990-219	UNI-LINE
9990-544	UNI-LINE
9990-791	UNI-LINE
9991-148	UNI-LINE
9991-233	UNI-LINE
9991-367	UNI-LINE
Bulb Size	1/4" x 9-1/4" Copper
Capillary Length	60"
Comments	1-10 Dial Uni-Kit
Dial Type	4-Way
E-271	CONSOLIDATED COMM.CO
EA3-110-36	ROBERTSHAW
EA3-115-36	ROBERTSHAW
EA3-141-36	ROBERTSHAW
EA3-141-48	ROBERTSHAW
EA3-165-24	ROBERTSHAW
EA3-211-60	ROBERTSHAW
EA3-236-36	ROBERTSHAW
EA3-236-60	ROBERTSHAW
EA3-29-36	ROBERTSHAW
EA3-29-60	ROBERTSHAW
EA3-29-72	ROBERTSHAW
EA3-442-60	ROBERTSHAW
EA3-490-18	ROBERTSHAW
Electrical Rating	30 Amps @ 277V AC\|20 Amps @ 480V AC\|18 FLA; 72 LRA @ 250V AC\|125 VA Pilot Duty at 120/277 Volts
F16-599	JOHNSTONE SUPPLY
Factory Part Number	SP-184
For OEM/Model Series	Down
G1-2554	RANCO
K-143-60	ROBERTSHAW
K-164-24	ROBERTSHAW
K-164-36	ROBERTSHAW
K-180-60	ROBERTSHAW
K-181-36	ROBERTSHAW
K-191-36	ROBERTSHAW
K-191-60	ROBERTSHAW
K-273-12	ROBERTSHAW
K-273-36	ROBERTSHAW
K-290-36	ROBERTSHAW
K-356-18	ROBERTSHAW
K-378-60	ROBERTSHAW
K-469-36	ROBERTSHAW
K-509-144	ROBERTSHAW
K-509-60	ROBERTSHAW
K-58-36	ROBERTSHAW
K-726-24	ROBERTSHAW
Mechanical Differential	8°F
Mounting Type	#6; Kit
P13389-36	ROBERTSHAW
P13829-36	ROBERTSHAW
P13910-36	ROBERTSHAW
P13915-36	ROBERTSHAW
P14665-24	ROBERTSHAW
P14711-60	ROBERTSHAW
P14736-36	ROBERTSHAW
PCT-4781-6	O.T.M. INC.
S-102-24	ROBERTSHAW
S-41-24	ROBERTSHAW
Series Application	SP Model Uni-Kit
SP-184-60	ROBERTSHAW
SP-250	ROBERTSHAW
SP-253-36	ROBERTSHAW
SP-297-48	ROBERTSHAW
Stem Length	2" Kit
Temperature Range	60°F to 250°F
Temperature Range	60°F to 250°F (15.5°C to 121.1°C)
Z43614-36	ROBERTSHAW
Z43614-72	ROBERTSHAW
Z43614	ROBERTSHAW
Z48614-36	ROBERTSHAW
Z48614-72	ROBERTSHAW
Z48614	ROBERTSHAW
