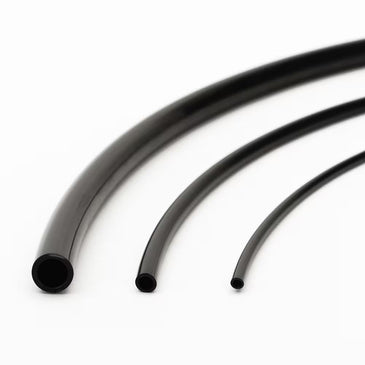

PFT-2A-BLK-1000 | PLASTIC AIR BRAKE TUBING (PER FOOT) Pack of 1000 | Parker

Recognized as the global leader in air brake tubing, Parker develops brake system connections that maintain a basically fixed relationship between couplings during vehicle operation. The tubing is made from nylon and is available in more than ten colors for quick identification of lines. In addition, air brake tubing can be manufactured and prepared in pre-cut lengths, harnesses and preformed bundles that can reduce installation times by more than 70%. In tractor, trailer and other mobile air brake applications, time studies show an average chassis harness installation took 4 employees about 40 minutes to complete. However, with a Parflex preformed harness, installation time dropped to 10 minutes and only 1 employee was required to complete the installation. Based on labor rates of $30/hr, customers saved over $75 an hour and 150 production minutes. With reduced manufacturing and labor costs, increased dimensional stability, and excellent UV stability, Parflex Air Brake Tubing is the optimal solution for air brake applications in expanding transportation markets.

Parflex makes enough air brake tubing in one year to circle the globe. Recognized as the global leader in air brake tubing, 1120 nylon air brake tubing provides excellent kink resistance for tight routings. This means reduced, and or, eliminated kinked lines resulting in less rework at installation.

Markets:
• Transportation
• Military
• RV & Bus

Features:
• 100% pressure tested
• Excellent UV stability for extended tubing life
• Abrasion resistant for added protection
• Kink resistant, allowing for less downtime due to kinking failure
• Available in more than ten colors for quick identification of lines
• Reduced manufacturing and labor costs due to harness and preformed bundle options
• Tubing maintains extended dimensional integrity and stability for durability and increased tubing life

Applications:
• Air brake lines

Certifications/Compliance:
• Meets SAE Specification J844
• Meets DOT FMVSS 49CFR 571.106

Technical Specifications:
• Material:
Type A - Single-wall extruded Nylon (polyamide)
Type B - Nylon (polyamide) core, fiber reinforcement, Nylon (polyamide) cover/sheath
• Working and burst pressures rated at 73°F (23°C)
• The wall thickness is for reference only
• Packaged on reels
