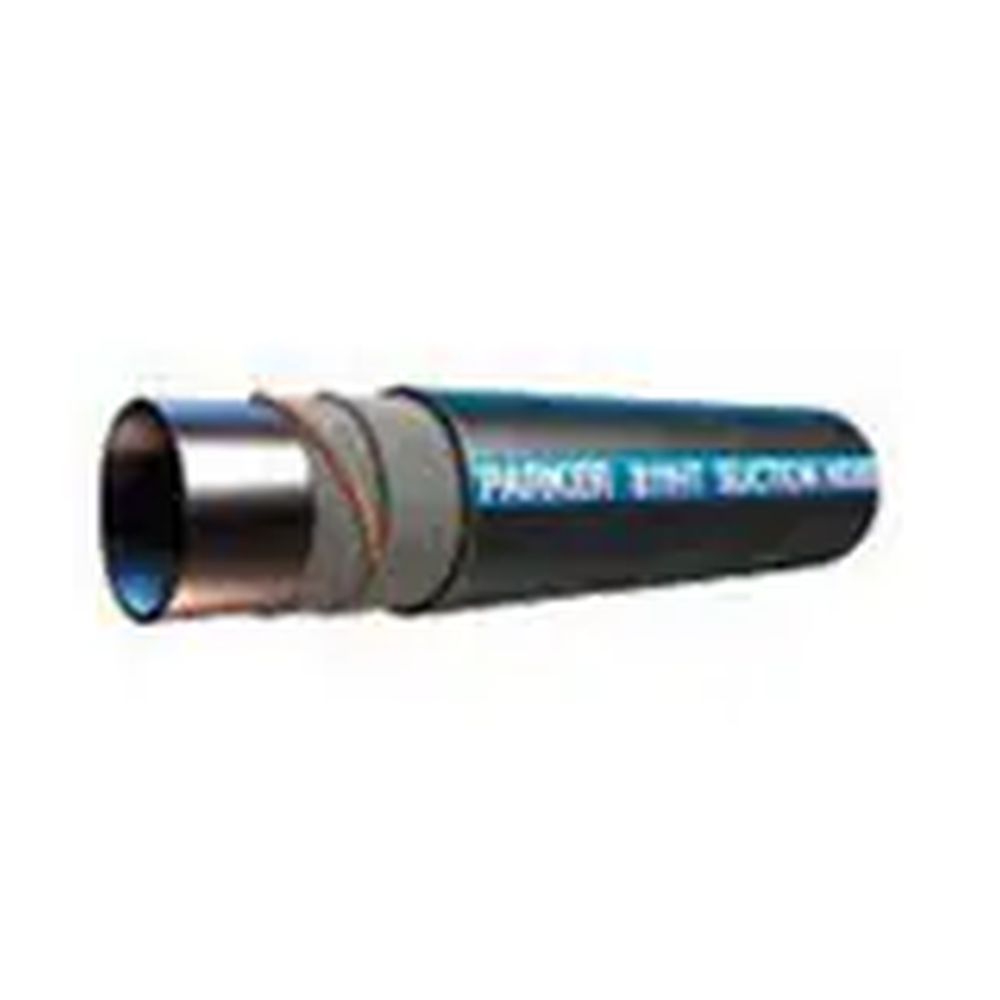

811HT-16 | 1"-100R4-250PSI/70PSI Pack of 100 | Parker

Brand: ParkerSKU: 811HT-16

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 811HT-16

Jump to: Overview & Specifications Reviews

Overview Details for 811HT-16

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811HT hose is designed, built, and tested to meet SAE J517 100R4 / SAE J1942 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• RV & Bus

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Railroad

• Utility Equipment

• Personnel Lift Equipment

• Machine Tool

• Oil Field Service

• Waste & Refuse

• Material Handling

• Marine

• Paving & Road Maintenance

• Ground Support Equipment

• Industrial

• Mining

Features/Benefits:

• 62-300 PSI working pressure in different sizes

• Half SAE bend radius for ease of installation and low force to flex

• Temperature range of -55 degrees Fahrenheit to 257 degrees Fahrenheit

• SAE J517 100R4 / SAE J1942 Performance Specifications

• MSHA accepted cover

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 81 series fittings (for -12 to -32)

• 88 series fittings (for -12 to -40)
