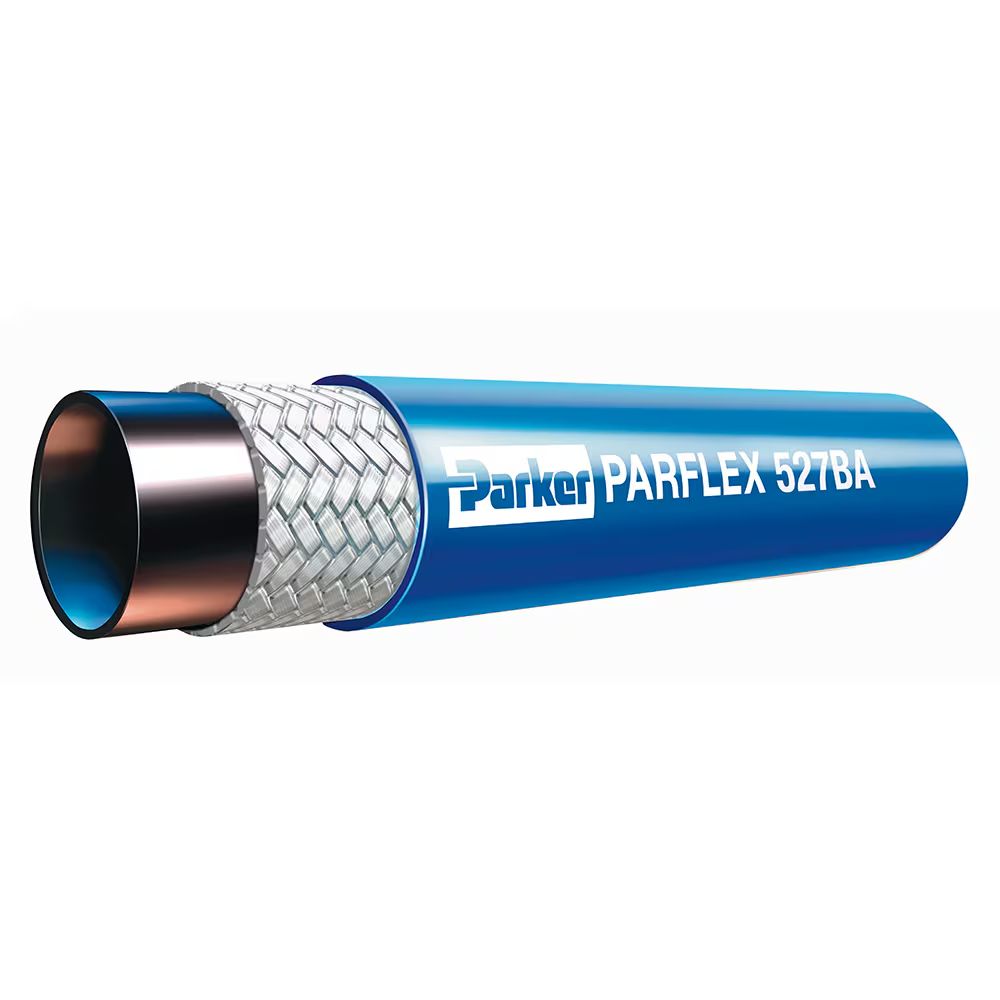

527BA-4 | BREATHING AIR REFILL HOSE_REEL (PER FOOT) Pack of 500 | Parker

Parkers’ Breathing Air Refill Hose complies with NFPA 1901 requirements for Fire Apparatus and CGA G7.1-1 Grade E Breathing Air Standards. This 7,000 psi hose is suitable for different tank fill applications, such as integrated containment fill stations, mobile and stationary systems (with or without cascade controls), mobile trailer/truck systems and portable SCBA fill. The 527BA hose does not contain conductive elements; therefore, it should not be used with explosive gases such as pure oxygen andr hydrogen. For more information and technical specifications, please refer to the Product Support tab to view our latest literature.

Markets:
• Industrial – High Pressure Breathing Air Refill

Features/Benefits:
• 7,000 psi working pressures

Applications:

• Integrated containment fill stations
• Mobile and stationary systems with or without cascade controls
• Mobile trailer/truck systems
• Portable SCBA fill

Certifications/Compliance:
• CGA G7.1-1 Grade E Breathing Air Standards
• NFPA 1901

Technical Specifications:
• Not for use as part of SCBA systems
• Not for use between a pressure reducing regulator and breathing mask
• For fitting attachment lubricate only with water or non-toxic lubricant
• Do not assemble with petroleum or hydrocarbon based lubricants
• Do not flush with solvents of any kind
• Hose does not contain a conductive element; therefore, it should not be used with explosive gases such   as pure oxygen and hydrogen
• Compliant with CGA Grade E Breathing Air Standards; however, air quality is dependent upon all system components
• Hose I.D. is nominal
• Hose O.D. is maximum
