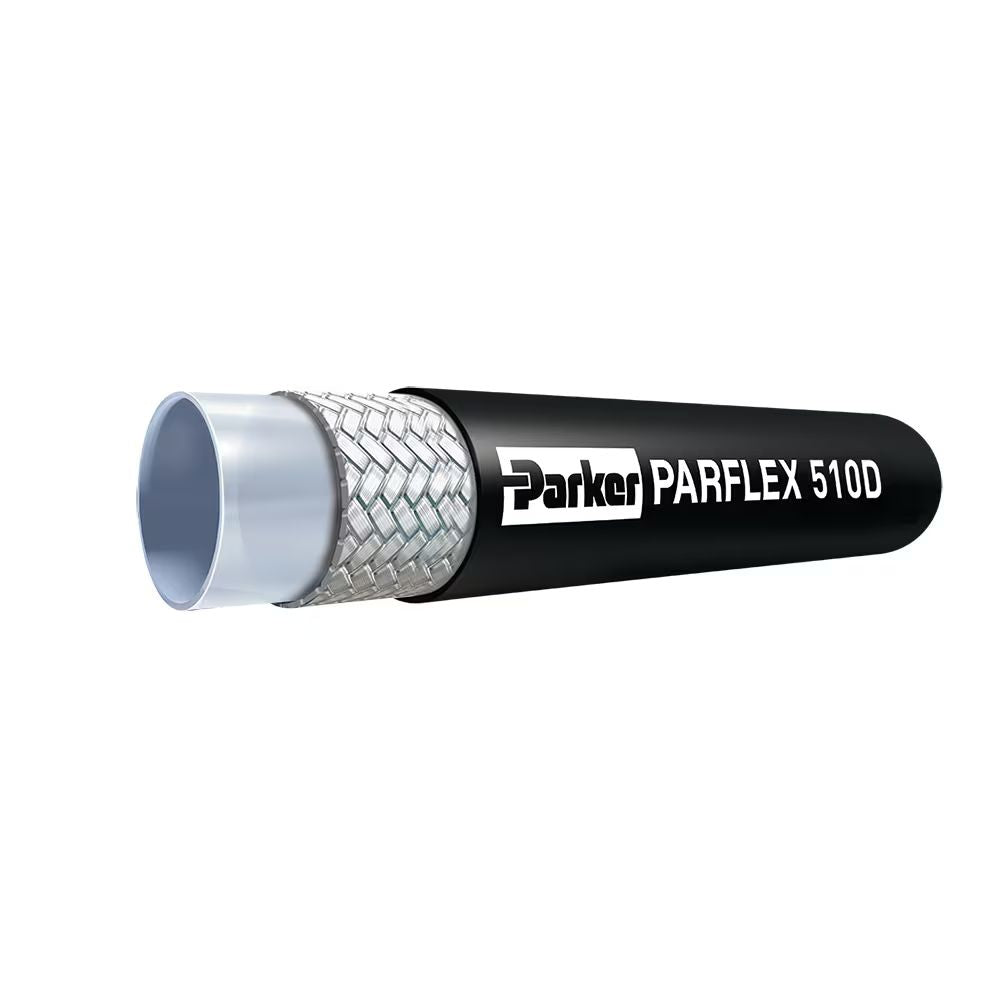

510D-4 | 100R7 HYDRAULIC HOSE (PER FOOT) Pack of 500 | Parker

Parker’s 510D thermoplastic 100R7 hose stands apart from most of our other J517 100R7 hoses because some sizes can be used field attachable fittings, in addition to crimp fittings. This improved design allows for quicker installations and maintenance change outs and the high density braid handles maximum impulse life without the loss of flexibility. The 510D hoses features an improved force to flex and a matte cover for low coefficient of friction. Available as a twin-line hose or multi-line hose.

Markets:
• Machine Tool
• Industrial
• Mobile Equipment
• Transportation
• Material Handling

Features/Benefits:
• Features low force to flex in sizes -3 through -8
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility

Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift

Certifications/Compliance:
• Meets/Exceeds SAE J517 100R7 specifications
• MSHA Cover
• DIN-GL Approved

Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum
