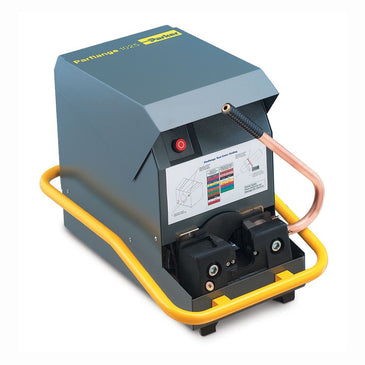

1025/110 | 110V BENCHTOP PARFLANGE | Parker

Parker's Parflange® 1025 produces fast, high-quality flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, it produces high-quality, consistent flanges and flares with a smooth mating surface in less than 25 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.

Features/Benefits:
• Produces a high-quality flange with smooth mating surface in less than 25 seconds (up to 1 ½” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
• Portable bench or cart mounted machine.
• Flanges and flares steel and stainless steel tube from ¼” up to 1 ½” OD.

Applications:
• Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.

Technical Characteristics:
• Available in 100-volt single-phase or 440-volt 3-phase (must specify upon ordering).
• Dimensions are 18” x 15” x 26” and weighs 175 lbs.
