0631 00 05 | KIT BLOW GUN POLYMER 0656 66 1 3 AND 1471U08 04 13 | Parker

Ready for use, simple and ergonomic, the Parker Legris blowgun kit remains an essential item of equipment for any blowing or spraying operation in the industrial environment.

Features/Benefits:

- Ready for Use

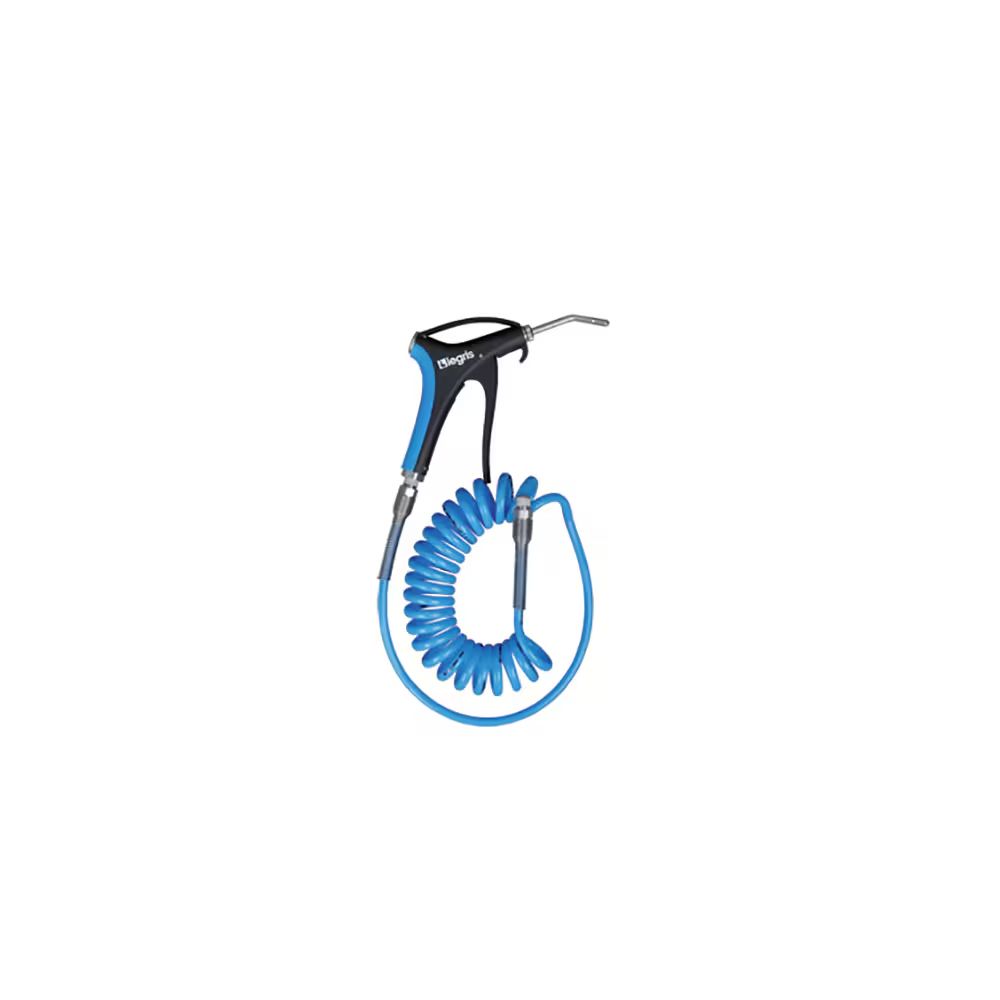

• Kit contents:
one blowgun
a 4 metre recoil tube
one R1/4 threaded fitting, external diameter 8 mm
• Easy to install and comfortable to use
• Wide range of models and nozzles for optimum flow
• Lower or upper connection
• Labelling and colours can be customised
• Packaging designed to facilitate self-service sales

- Safety & Performance

• Safe operation with the Safety or OSHA models
• Durable, shock-resistant materials
• 100% leak and flow-tested in production
• Date coding to guarantee quality and traceability
• Minimum pressure drop
• Optimisation of your energy consumption with the Energy-Saving model

Markets:

• Factory Automation
• Miscellaneous manufacturing
• Packaging
• Vehicle Assembly Facilities

Applications:

• Manufacturing Workshops
• Cleaning
• Cooling
• Blowing
• Mixing
• Ejection

Technologies:

• Safety blow gun
• Standard nozzle
• Angled nozzle
• Air nozzle
• Air tool kit
• Compressed air nozzle
• Air blow gun

Technical Characteristics:

• Fluids: Compressed air, other fluids: contact us
• Materials: nickel-plated brass, aluminium, technical polymer, recoil polyurethane, silicone free
• Pressure: 0 to 10 bar
• Temperature:
Air: -15°C to +50°C
Dry air: -20°C to +80°C

Regulations:

Compliance for all blowguns:
• DI: 97/23/EC (PED)
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 1907/2006 (REACH)
Protection of design:
All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 22
Compliance for specific blowguns:
• DI: 1910.242 (b) [OSHA]
The static pressure must be less than 30 psi in case the nozzle becomes blocked.
• DI: 1910.95 (b) [OSHA]
The noise level must be less than 90 dBA over 8 hours' exposure.
• DI: 2003/10/EC
Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87dBA.

Product Types:

• Blowgun Kit, Lower Connection, Male BSPT Thread
• Safety Blowgun Kit, Lower Connection, Male BSPT Thread
• Energy Saving Blowgun Kit with Angled Nozzle, Male BSPT Thread
• Blowgun Kit, Lower/Upper Connection with Standard Nozzle, Male BSPT Thread
• Blowgun Kit, Lower Connection with Short Angled Nozzle, Male BSPT Thread
• Blowgun Kit, Lower/Upper Connection with Interchangeable Nozzle, Male BSPT Thread
• Energy Saving Blowgun Kit, Lower Connection, Interchangeable Nozzle, Male BSPT Thread
