RT850T-240 | SOLID STATE RELAY FOR ELECTRIC HEAT WITH BUILT-IN TRANSFORMER 208- 240/2 4V | Resideo

Brand: ResideoSKU: RT850T-240

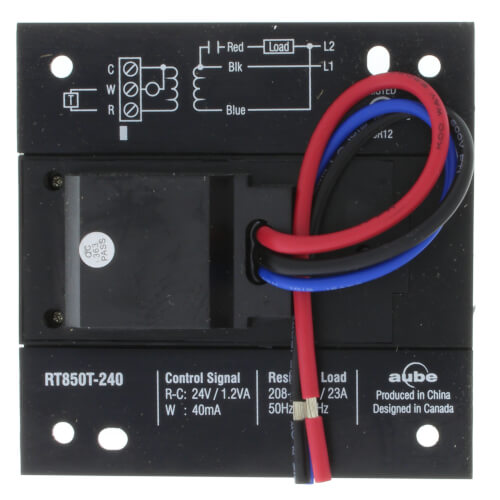

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RT850T-240

Jump to: Overview & Specifications Reviews

Overview Details for RT850T-240

Resideo RT850T-240: Solid-State Relay for Industrial Automation The Resideo RT850T-240 is a high-performance solid-state relay designed for demanding industrial applications. It features a robust zero-cross switching design, ensuring reliable operation and extended lifespan. With an input voltage of 240VAC and a load current of 850A, this relay is ideal for controlling high-power loads such as motors, transformers, and lighting systems. The RT850T-240 offers several advanced features, including: * **Zero-Cross Switching:** Eliminates EMI/RFI noise and reduces arcing, extending component life. * **High Isolation:** 4500Vrms isolation voltage ensures electrical safety and prevents damage from transient voltage spikes. * **Snubberless Design:** Built-in snubber circuit reduces electromagnetic interference and simplifies installation. * **DIN-Rail Mounting:** Enables easy and secure mounting within industrial control panels. The Resideo RT850T-240 is a reliable and efficient solution for a wide range of industrial automation applications. Its durable construction, advanced features, and competitive pricing make it an exceptional choice for engineers and maintenance professionals seeking a high-quality solid-state relay. Shop our HVAC supply store for the best prices and fast shipping on the Resideo RT850T-240 and other industrial automation products!

Application

The RT850T Solid State Relay is designed to control a line voltage resistive load from a 24V control signal or dry contact. The relay is equipped with an LED for visual confirmation of load switching and can be used with a shortcycled thermostat (15 seconds) to provide precise temperature control. The RT850T has a built-in 24 V transformer and is compatible with 2-wire mechanical or battery-operated thermostats as well as 3-wire (R,C,W) thermostats.

Specifications

Voltage (VAC):208, 240, 347

Resistive load (A): 23

Control signal: 24 VAC / 40 mA

Guaranteed OFF signal: Voff  5 VAC

Transformer ratings: 24 VAC / 1.2 VA / Class 2
Ambient operating temp.: -4°F to 140°F (-20°C to 60°C)
Ambient storage: -40°F to 175°F (-40°C to 80°C)
Humidity limits: 0 to 95% non-condensing
Net weight: 1 lb. 3 oz. (552 g)
Terminal wire size: 12 AWG
