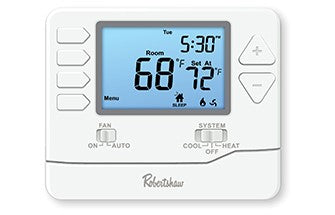

RS9220 | Programmable Thermostat | Universal Multi Stage | Robertshaw

Control Your Comfort with Robertshaw RS9220: 7-Day Programmable ThermostatThe Robertshaw RS9220 thermostat offers precise temperature control with its user-friendly interface and advanced features. This 7-day programmable thermostat empowers you to create custom heating and cooling schedules, ensuring optimal comfort and energy efficiency in your home or business. Features and Benefits: - 7-Day Programming: Set different temperature preferences for each day of the week, adapting to your unique schedule. - 5-1-1 NP: Program up to five heating periods and one cooling period per day, providing maximum flexibility. - 2H/2C Stat: Control both heating and cooling systems with ease, maintaining a comfortable environment year-round. - Large Display: The clear and backlit display allows for easy viewing and adjustment of settings. - Simple Installation: Follow the included instructions for a quick and hassle-free setup. Applications: - Residential Homes: Optimize comfort and reduce energy consumption in your living space. - Commercial Buildings: Maintain a comfortable and consistent temperature in offices, retail stores, and other commercial properties. - Industrial Facilities: Ensure a stable temperature for sensitive equipment and processes. Trust our HVAC supply store for Your Robertshaw RS9220 Thermostat: our HVAC supply store is your trusted source for high-quality HVAC products. We offer the Robertshaw RS9220 thermostat at competitive prices, along with fast shipping and excellent customer service. Upgrade your temperature control today and experience the benefits of a programmable thermostat!

Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat. Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered  OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Series ApplicationMulti-Stage 2 Heat / 2 Cool Programmable Factory Part NumberRS9220 Dimensions4.7 x3.8 x 1in (119.6 x 97.6 x 26mm) Mounting TypeWall or junction box Temperature Range41°F to 95°F (5°C to 35°C) Power Source24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included) TerminalsRh, Rc, C, Y, Y2, W, W2, G, O, B
