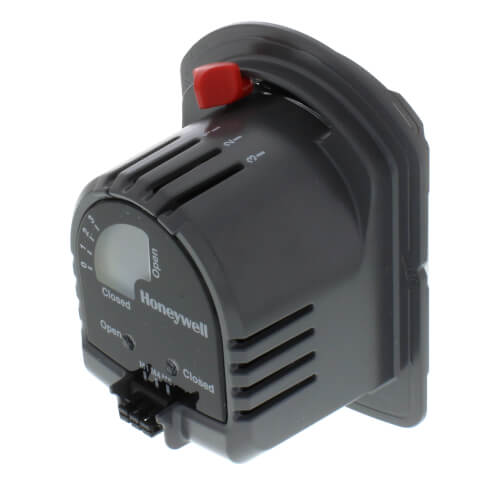

M847D-ZONE | 24V TWO POSITION SPRING OPEN REPLACEMENT ACTUATOR | Resideo

Resideo M847D-ZONE 24v S/R Open Air Zoning Damp Act The Resideo M847D-ZONE 24v S/R Open Air Zoning Damp Act is a replacement item. It is an air zoning damper actuator, a device that controls the flow of air in an HVAC system. This actuator is compatible with 24-volt systems and has an open/close spring return function. The M847D-ZONE is made of durable materials and is designed to withstand the rigors of commercial and industrial use. Shop our HVAC supply store for the best prices and fast shipping on all your HVAC needs!

Applications

ARD Series Damper The ARD is a round damper with a 24 Vac, spring-Open return damper motor used to control circulating air in heating, cooling, and ventilating systems. EARD Series Damper The EARD is a round damper with a 24 Vac powered-open/ spring-closed motor. It is used for fresh air intake for Ventilation or for combustion makeup air. ZD Series Damper The ZD is a power close and spring open damper. It has a 24- volt motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE and other electronic zoning systems.

Features

• Taping Flange and non-interfering set screw
• High Temperature outer plastic for hot environments
• Redesigned all Metal Drive Train Gears
• Front facing display with LED Indication light for Open and Close.
• Adjustable damper position range stops
• Quiet operation.
