Documents: L4006G1006
L4006G1006 | Aquastat | Resideo

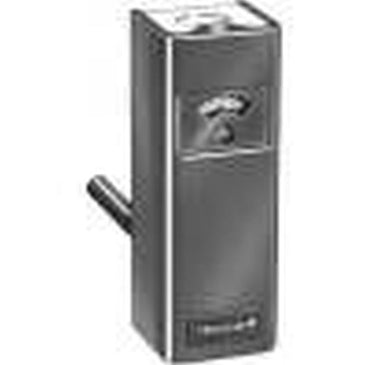

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to L4006G1006
Overview Details for L4006G1006
Rugged and Precise: Resideo L4006G1006 Copper Water Control Valve:
The Resideo L4006G1006 is a top-rated water control valve designed for industrial applications. Its 3/8" copper construction ensures durability and corrosion resistance, making it ideal for use in challenging environments.
Precise Temperature Control:
This valve provides exceptional temperature control, operating within a range of 100-200 degrees Fahrenheit. Its accurate temperature sensing and regulation capabilities make it perfect for applications requiring precise liquid temperature maintenance.
High Flow Capacity:
With a flow capacity of 48 amps, the Resideo L4006G1006 enables efficient fluid flow, minimizing pressure drop and maximizing system performance. Its high flow rate allows for rapid filling and discharging, ensuring optimal system efficiency.
Reliable and Durable:
Constructed with durable materials and robust design, this valve offers extended service life and reliability. Its anti-seize components prevent wear and tear, ensuring consistent performance over a long period.
Applications:
The Resideo L4006G1006 water control valve finds applications in various industrial settings, including:
- Cooling and heating systems
- Process control
- Fluid handling
- Manufacturing processes
At our HVAC supply store, we offer the Resideo L4006G1006 water control valve at competitive prices and fast shipping. Order now for reliable and efficient fluid control in your industrial applications!
Specifications
- Hazmat Information
- UN 1294, TOLUENE, 3, II
- Application
- Aquastat Controller
- Dimensions (in.)
- Case--5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
- Dimensions (mm)
- Case--143 mm high x 51 mm wide x 54 mm deep
- Temperature Range (F)
- Maximum--150 F
- Temperature Range (C)
- Maximum--66 C
- Mounting
- Horizontal or Vertical
- Electrical Ratings
- At Full Load-- 8A @ 120 Vac: 1.3A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
- Operating Temperature Range (F)
- 100 F to 200 F
- Operating Temperature Range (C)
- 38 C to 93 C
- Bulb Size (in.)
- 3/8 in. x 2 7/8 in. copper
- Bulb Size (mm)
- 10 mm x 73 mm copper
- Capillary Length (in.)
- 4 in. less well
- Capillary Length (mm)
- 102 mm
