Documents: CSE-1203

CSE-1201/1202/1203 Differential Pressure Switches Data Sheet CSE-1201/1202/1203 Installation Guide More Info

CSE-1203 | Sensor; Differential Pressure Switch, Barbed, 2.00-10.0" Adjustable, Greystone #GFS-86-N-IK | KMC

Sensor; Differential Pressure Switch, Barbed, 2.00-10.0" Adjustable, Greystone #GFS-86-N-IK

Brand: KMCSKU: CSE-1203

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CSE-1203

Jump to: Overview & Specifications Reviews

Overview Details for CSE-1203

Sensor; Differential Pressure Switch, Barbed, 2.00-10.0" Adjustable, Greystone #GFS-86-N-IK

These differential pressure switches are used to remotely sense over pressure, vacuum, and differentials of pressure.

Typical applications include sensing fan or blower operation in ducted ventilation systems, sensing pressure drop across filters, and sensing frost build-up on coils. The SPDT switch allows remote status/alarm indication or operation of electrical circuits to other control devices.

The three models have three different pressure ranges to meet nearly any need. (See the data sheet for details.)

Features include:

The housing contains a diaphragm, a snap-acting SPDT switch, range adjustment knob with inches water column and Pascals increments
An enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting dial
The sample connections located on the side accept 6.35 mm (0.25 inches) OD tubing

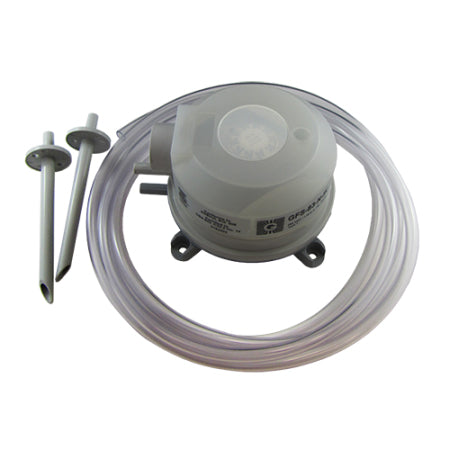

Includes mounting screws, terminal screw connection adapters, two sensor probes, and PVC tubing
