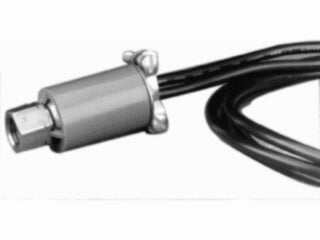

P100AC-1C | ENCAPSUL PRESSURE CONTROL; 5-20# OPENS ON FALL; AUTO RESET CONDUIT CLAMP | Johnson Controls
Overview
Details for P100AC-1C
ENCAPSUL PRESSURE CONTROL; 5-20# OPENS ON FALL; AUTO RESET CONDUIT CLAMP
Description
P100 Series switches are encapsulated, nonadjustable, single-pole, single-throw (SPST) and single-pole, doublethrow (SPDT), direct-mount switches for use with non-corrosive refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset is available with open high action. Refer to the P100 Series Encapsulated Pressure Controls Product Bulletin (LIT-121485) for important product application information.
Features
- Compact size and light weight for direct mounting
- Trip-free manual reset on manual reset models; contacts cannot be overridden by continued depression of the reset button
- Use with all non-corrosive refrigerants
- Dust tight encapsulated switch
- 1/4 in. internal flare fitting with built-in Schrader type depressor is standard
- Electrical connections are made to 48 in. (122 cm) leads
Applications
- Low limit, high limit, and fan cycling control in commercial refrigeration and air-conditioning
- Ice machines
- Food service equipment
Repair information
If the P100 Series Encapsulated Pressure Switches fail to operate within its specifications, replace the unit. For a replacement switch, contact your Johnson Controls® representative.
Specifications
Item Number | P100AC-1C |
Brand | Johnson Controls |
Category | Pressure Independent Valves |
