CSE-1202 | Sensor; Differential Pressure Switch, Barbed, 0.20-2.00" Adjustable, Greystone #GFS-83-N-IK | KMC
Sensor; Differential Pressure Switch, Barbed, 0.20-2.00" Adjustable, Greystone #GFS-83-N-IK

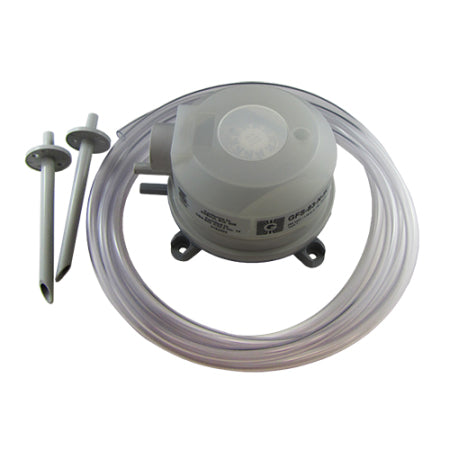

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CSE-1202
Documents and manuals
Overview
Details for CSE-1202
Sensor; Differential Pressure Switch, Barbed, 0.20-2.00" Adjustable, Greystone #GFS-83-N-IK
These differential pressure switches are used to remotely sense over pressure, vacuum, and differentials of pressure.
Typical applications include sensing fan or blower operation in ducted ventilation systems, sensing pressure drop across filters, and sensing frost build-up on coils. The SPDT switch allows remote status/alarm indication or operation of electrical circuits to other control devices.
The three models have three different pressure ranges to meet nearly any need. (See the data sheet for details.)
Features include:
- The housing contains a diaphragm, a snap-acting SPDT switch, range adjustment knob with inches water column and Pascals increments
- An enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting dial
- The sample connections located on the side accept 6.35 mm (0.25 inches) OD tubing
- Includes mounting screws, terminal screw connection adapters, two sensor probes, and PVC tubing
Specifications
- Brand
KMC Controls
- Sensor Type
Pressure/Flow
