P470EB-1C | DIGITAL ELECTRONIC; LINE VOLTAGE ELECTRONIC PRESSURE CONTROL W/DISPLAY | Johnson Controls
Documents and manuals
Johnson Controls P470EB-1C Documents
Overview
Details for P470EB-1C
DIGITAL ELECTRONIC; LINE VOLTAGE ELECTRONIC PRESSURE CONTROL W/DISPLAY
Description

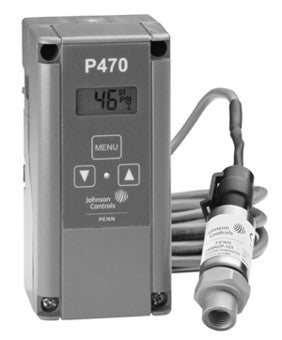

The P470 Electronic Pressure Control with Display is a single-stage, on and off, electronic pressure control with a single-pole, doublethrow (SPDT) output relay. You can field-set the P470 control to operate in one of the following three pressure ranges, as either an open-high or open-low control: 0 psi to 100 psi, 0 psi to 500 psi, or 50 psi to 750 psi.
The P470 control has a large LCD that displays the sensed pressure, other systemstatus indicators, and adjustable setpoints in the programming mode. The P470 control has a lockable, three-button touchpad for adjusting setpoints, and a front-panel LED that indicates the output relay status.
The P470 control uses a P499 or P599 Series Electronic Pressure Transducer and a WHAPDK3 wiring harness to sense system pressure. This arrangement eliminates almost all refrigerant leaks because there are no capillaries or bellows to break or fail.
Features
- Easy-to-read LCD
- Three field-selectable pressure ranges between 0 psi and 750 psi
- 24 VAC, and 120 VAC or 208/240 VAC models
- Lockable, three-button, front-panel touchpad
- Built-in, adjustable, anti-short cycle time-delay
- Uses an economical and versatile transducer and wiring harness
- Electronic Pressure Control
- 120 or 208/204 VAC
- 0-100/0-500/50-750 psi Field Selectable Ranges
- LCD Display
- Front-Panel Touchpad
Specifications
Item Number | P470EB-1C |
Brand | Johnson Controls |
Category | Pressure |
Category | Pressure Independent Valves |
Section | Differential Pressure Controller |
SubCategory | Differential Pressure Controller |
