TSTAT, STANDALONE, FCU/VAV, 0-10VDC PROP, DEHUMID, FULL COLOR, WHITE, JCI LOGO

Description

The TEC3000 Color Series Thermostat Controllers are wireless, stand-alone, and field-selectable BACnet® MS/TP or N2 networked devices that provide on/off, floating, and proportional control of the following:

• • Local hydronic reheat valves
• • Pressure-dependent VAV equipment with or without local reheat
• • Two- or four-pipe fan coils
• • Cabinet unit heaters
• • Other zoning equipment using an on/off, floating, or 0 to 10 VDC proportional control input
• • Single- or two-stage control of unitary rooftop units (RTUs) • Single- or two-stage control of RTUs with economizers
• • Single- or two-stage control of heat pumps
• • Single- or two-stage control of heat pumps with economizers

You can remote monitor and program the wireless and field-selectable BACnet MS/TP or N2 networked thermostat controllers through the building automation system, for efficient space temperature control. The wireless thermostat controllers feature a connection to the ZFR Pro wireless network.

All models include a USB port configuration that reduces installation time by allowing simple backup and restore features from a USB drive, which enables rapid cloning of configuration between like units. The programming memory of all TEC3000 Series Thermostat Controllers is non-volatile.

Some models feature a built-in occupancy sensing capability. These thermostat controllers use additional standby setpoints to maximize up to 30% energy savings in highenergy usage commercial buildings, such as schools and hotels, during occupied times.

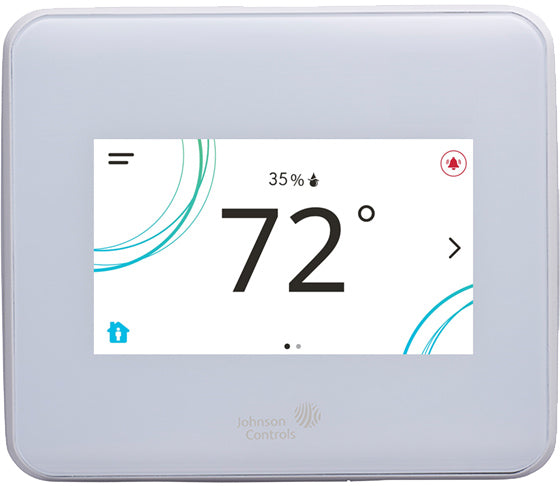

A bright, high-definition capacitive touchscreen display provides responsive feedback and improved readability of text and icons. The home screen is configurable to Modern and Classic, and Light and Dark themes. Models are available in modern black or white high-gloss designs with or without the Johnson Controls® logo.

The following fan configurations are supported for fan coil equipment types:

•  Single-speed
•  Multi-speed (two or three discrete speeds)
•  Variable-speed/EC motors (0 to 10 VDC control)

All models support dehumidification on twopipe fan coil units with reheat, and four-pipe fan coil units with or without reheat.

When no heating is required and mechanical cooling is available, the thermostat controller monitors space humidity and activates dehumidification control as necessary. Heat or reheat is used as required to maintain the space temperature.

For optimal dehumidification performance, use a fan coil unit that includes a multi-speed or variable-speed fan (VSF).

Refer to the TEC3000 Color Series Wireless, Stand-Alone, and Field-Selectable BACnet® MS/TP or N2 Networked Thermostat Controllers Product Bulletin (LIT-12013193) for important product application information

Features and benefits

•  Two configurable binary inputs— Provide additional inputs for advanced functions such as remote night setback, service or filter alarms, motion detector, and window status.
•  Field-Selectable BACnet MS/TP or N2 Networked Communication (TEC36xx1x-000 Models)—Simplifies the upgrade from N2 networked communication to BACnet MS/TP networked communication without changing hardware.
•  USB port configuration—Rapidly clone the configuration between like units through simple backup and restore features from a USB drive to reduce installation time.
•  Programmable in seven languages— Provides English, Spanish, French, German, Italian, Dutch, Portuguese (requires a downloadable language pack)
•  Backlit full-color liquid crystal display (LCD)—Offers an intuitive color backlit display that makes setup and operation quick and easy. The new display features on all models and offers real-time control status of the environment in easy-to-read, plain text messages with an adjustable backlight that brightens during user interaction.
•  Configurable touchscreen UI—Facility managers can limit the user interaction with the thermostat controller display based on specific energy policies.
•  Various models available—Offers models in modern black1 or white2 highgloss designs with or without the Johnson Controls logo.

1.  The color code of the black used for the TEC3000 Color Series is: hex #2d2926 or RAL 9017.
2.  The color code of the white used for the TEC3000 Color Series is: hex #F4F5F0 or RAL 9016 TEC3000 Color Series Wireless, Stand-Alone, and Field-Selectable BACnet® MS/ TP or N2 Networked Thermostat Controllers Catalog Page

•  End-of-line switch—Simplifies the layout and installation of communication buses.
•  Mobile Access Portal (MAP) Gateway compatibility (MAP Release 4.0 or later)—View the equipment and control the conditions through your mobile devices.
•  Onboard occupancy sensor (TEC3031- 1x-000 and TEC3xx3-1x-000 Models)— Provides energy savings in high-energy usage commercial buildings without additional installation time or cost.
•  Integral humidity sensor—Monitors space humidity on all models. Activates dehumidification control on two-pipe fan coil units with reheat and four-pipe fan coil units with or without reheat.
•  Multiple fan configurations for fan coil equipment types—Provide fieldselectable single-speed, multi-speed, and variable-speed fan control capabilities.
• Full line of remote TE-6300 Series Temperature Sensors—Support a wide usage commercial buildings without additional installation time or cost.
•  Built-in schedule object—Allows all wireless and wired models of thermostat controllers to be scheduled as stand-alone devices; allows wireless and BACnet MS/ TP models to be defined and adjusted through the building automation system.
•  Optimal start—Allows each thermostat controller to anticipate the heating or cooling needs of a space by starting the equipment early enough to reach the setpoint at the beginning of the scheduled occupancy.
•  Auto-tuned control loops—Reduce commissioning time, eliminate change-ofseason recommissioning, and reduce wear and tear of the mechanical devices.
•  Load shed—Commands a load shed input to offset the heating and cooling setpoints by a fixed amount on networked models. The change rate of the setpoints is adjustable. The load shed feature is in place to help satisfy the California Title 24 requirements that are defined in joint appendix JA5, section JA5.2.4 for demand signal response. The trigger for this event is defined in another controller and passed through the network command.

Repair information

If the TEC3000 Color Series Thermostat Controllers fails to operate within its specifications, replace the unit. For a replacement TEC3000 Thermostat Controller contact the nearest Johnson Controls® representative
