Details for TE-68PP-1N00S
PT 1K MOD JACK/WARM/COOL; PLATINUM 1K OHM W/MODULAR JACK AND WARMER/COOLER

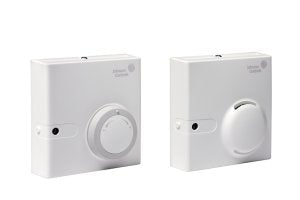

The TE-68xx-xN00S Series provides temperature sensing in room wall mount applications. It allows local setpoint temperature adjustment and temporary occupancy override.
A warmer/cooler dial is included on certain models for minor temperature adjustments from the setpoint. An occupancy override button allows the user to request a time-ofday scheduling override when the space is occupied outside of the normal occupied hours schedule. All sensors have DIP switches that enable or disable unit functions.
Depending on the model chosen, the wires connecting the sensor to the controller can be terminated using a screw terminal block or modular jack connection, offering wiring flexibility. All models include a Zone Bus access port for connecting accessories to access the 6-pin modular jack. This feature allows a technician to commission or service the controller via the sensor.
- controller configuration switch — allows users to adjust room comfort and to choose occupancy features that match the application and controller
- occupancy Light-Emitting Diode (LED) indicator — displays the current operating mode of the controller (VMA1200 and VMA1400 Series controllers only)
- manual override Pushbutton (PB) — overrides time-of-day scheduling when the space is occupied outside of normal occupied hours schedule
- Temperature Sensor
- 1K Platinum RTD
- Setpoint Adjustment Override
- No Display
- Modular Jack Connection
