JT2427H13A020 | 1"NPT;2NC;7.0CV;24V; 2-WAY; N.C. ZONE VALVE 1" NPT; 7.0 CV; 24VAC. ON/OFF SPR. RETURN | Johnson Controls

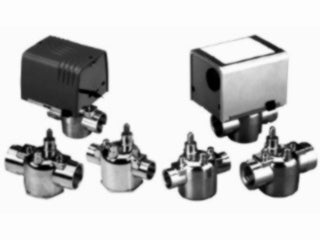

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to JT2427H13A020

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Johnson Controls JT2427H13A020 Documents

Datasheet More Info

Overview

Details for JT2427H13A020

1"NPT;2NC;7.0CV;24V; 2-WAY; N.C. ZONE VALVE 1" NPT; 7.0 CV; 24VAC. ON/OFF SPR. RETURN

Description

This electric zone valve with forged brass body offers two-way spring closed (normally closed), on/off control for hot or chilled water applications. Refer to the J Series Electric Zone Valves Product Bulletin (LIT-977282) for important product application information.

Features

forged brass body and hard chrome-plated brass stem
on/off control from a two-wire thermostat
provides economical control of hot or chilled water for fan coil, baseboard radiator, and VAV reheat applications
300 psig system operating pressure
400 psig static pressure rating
Buna-N (standard temperature) or nitrile disk (high temperature) provides tight closeoff
1/2 in., 3/4 in., and 1 in. line sizes
sweat, NPT, or inverted flare end connections
actuator can be factory or field installed
actuator snaps in place for easy removal and assembly during installation
