E20-4801600M-D-KIT-NS | Class 2000 Meter, 277/480V, 1600A, MMU Enclosure, Pulse Output, Demand, Current Sensors NOT Included (Meter Only) | Honeywell
Documents and manuals
Honeywell E20-4801600M-D-KIT-NS Documents
Overview
Details for E20-4801600M-D-KIT-NS
Class 2000 Meter, 277/480V, 1600A, MMU Enclosure, Pulse Output, Demand, Current Sensors NOT Included (Meter Only)

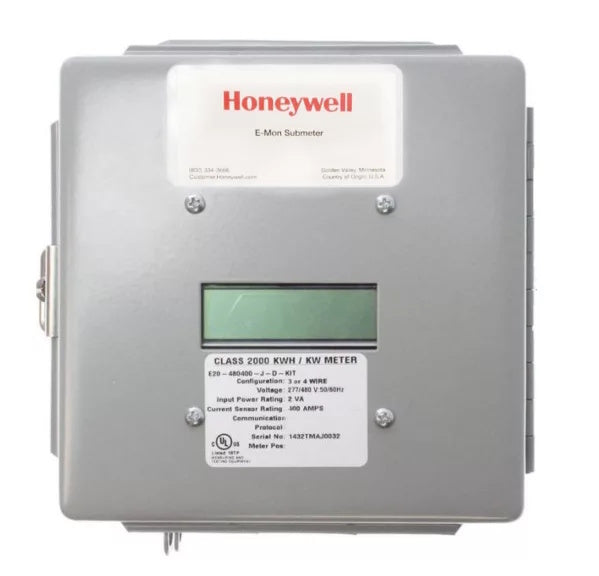

E-Mon Class 2000 3-Phase Pulse Meter
Three-phase kWh/kW (demand) meter used to monitor electric power usage of individual loads after the utility meter
E-Mon Class 2000 Meters are designed to provide the basic building blocks of an affordable, effective and scalable energy management system. These easy to install meters can monitor anything from a specific load panel to an entire building.
Energy usage data can be viewed via meters, LCD display for easy walk up and read, monitoring of energy consumption. Remote metering via E-Mon Energy Automatic Meter reading (AMR) or Web-Mon Web Enabled Monitoring systems is also easily interfaced for tenant billing energy management and cost allocation.
Features & Benefits:
- Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh and “real-time” kW load
- Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure
- Revenue-grade accuracy
- Current sensor installation diagnostics
- Fixed pulse output
- Non-volatile memory
- Maintains reading in the event of power failure
- Meter can be used on the following configurations: 2-phase/3-wire and 3-phase/3- or 4-wire with included current sensors from 100-3200A
- A demand option displays the kW peak demand over a 15- or 30-minute demand interval
- Industrial grade JIC steel and optional NEMA 4X polycarbonate enclosure (standard) with padlocking hasp & mounting flanges for indoor/outdoor installation.
- California CTEP
- California Energy Commission
- UL/CUL Listed
- ANSI C12.20
- New York City approved
- Con Edison approved for RSP program
Specifications
Item Number | E20-4801600M-D-KIT-NS |
Brand | Honeywell |
Amps | 1600A |
Housing | MMU Enclosure |
Sensors | Not Included (Purchase Separately) |
Series | Class 2000 Meter |
Signal Output/Protocol | Pulse Output |
Type | Meters |
Voltage | 277/480V |
