E50-480200-J01-N-KIT | Class 5000 Meter, 277/480V, 200A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Green Class Net Meter, 3 Split-Core Current Sensors with 2V Output | Honeywell
Documents and manuals
Honeywell E50-480200-J01-N-KIT Documents
Overview
Details for E50-480200-J01-N-KIT
Class 5000 Meter, 277/480V, 200A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Green Class Net Meter, 3 Split-Core Current Sensors with 2V Output
Class 5000 Meter, 277/480V, 200A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Green Class Net Meter, 3 Split-Core Current Sensors with 2V Output
Description

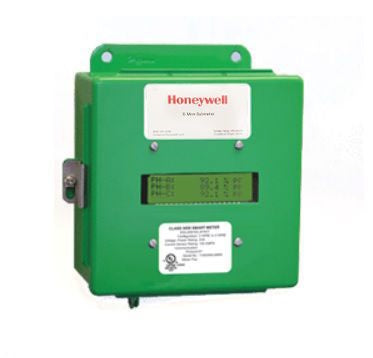

Honeywell’s E50-480200-J01-N-KIT is an H-series three-phase class 500 meter designed to monitor electric power consumption and usage of individual loads. The three-phase meter has a built-in communication system supporting various protocols:
- RS-485 (BACnet MS/TP, Modbus RTU, EZ-7, Lon Twisted Pair)
- Ethernet (BACnet IP, Modbus TCP/IP, EZ-7)
Class 500 meters provide a wide range of metering data points, including:
- Apparent power
- Current total & average
- Reactive, apparent, and real power
- Received & delivered energy
- Voltage line
- Frequency
- Phase angle
- Different types of metrics for each phase
The device can monitor additional data metrics (such as water, gas, to maintain and repair and BTU) with interval data logging via E-Mon Energy software.
Features and Benefits
Honeywell’s Class 500 meters have the following provide:
- Wide range of data. The four-line display can show over 12 types of metrics, including reactive power, apparent power, real power, received & delivered energy, available in kW, kWh, as well as amps, volts, and power factor per phase.
- Optional metrics. The device can monitor gas, water, BTU, and other metrics with 5th and 6th channels (provided you use appropriate communication protocols and E-Mon Energy software).
- Safe and accurate mounting. The device can be installed about 500 feet from sensors without power interruption thanks to 0-2 V output split-core sensors, while ANSI C12.20 provides accurate readings.
- Easy installation. The sensor installation diagnostics indicator, phase error, and phase angle diagnostics are available on display.
- Various communication protocols. The meter supports RS-485 and Ethernet communication protocols.
- Compatibility. The meter is compatible with building management systems, E-Mon Energy software, and other automatic meter reading and profiling tools.
Applications
The E50-480200-J01-N-KIT three-phase meter automatically monitors electric power consumption for different loads and store the data in kVAR or kW. All H-series three-phase class 500 meters have a 4X polycarbonate enclosure and type 1 heavy duty JIC steel enclosure. You can install the device both indoors or outdoors without risks.
Specifications
Item Number | E50-480200-J01-N-KIT |
Brand | Honeywell |
Amps | 200A |
Housing | JIC Steel Enclosure |
Sensors | Included |
Series | Class 5000 Meter (Green) |
Signal Output/Protocol | EZ-7 |
Signal Output/Protocol | EZ-7 Ethernet Protocol |
Type | Meters |
Voltage | 277/480V |
