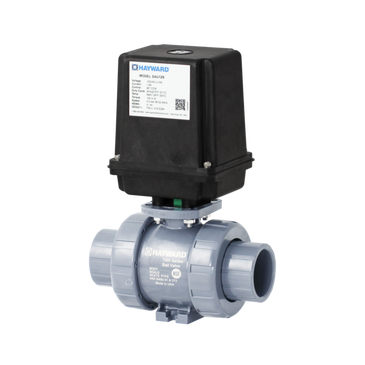

EAUTBH210STE | Actuated 1" CPVC TU Ball Valve w/EPDM seals, socket/threaded ends, 115 VAC EAU Actuator w/one terminal strip & aux. limit switch included | Hayward

Brand: HaywardSKU: EAUTBH210STE

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EAUTBH210STE

Jump to: Overview & Specifications Reviews

Overview Details for EAUTBH210STE

Actuated 1" CPVC TU Ball Valve w/EPDM seals, socket/threaded ends, 115 VAC EAU Actuator w/one terminal strip & aux. limit switch included

Hayward Flow Control’s industry leading actuation offering and service is now quicker than ever before. By maximizing our LEAN production model and full scale US manufacturing base, Hayward can get your system up and running when it has to. Get any one of the selected automated ball and butterfly valve packages shipped out to you within one business day of ordering.That simple. That easy

VALVE FEATURES
• System2TM Sealing Technology for longer life cycle
• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full
pressure rating
• Consistent operating torque with adjustment-free
design
• ISO mounting flange
• Permanent markings, eliminates labels
• Integral footpad for skid or panel mount
• FPM or EPDM seals
• Double O-Ring stem seals
• Easy replacement for existing Hayward TB Series
• NSF / ANSI 61 and NSF / ANSI 372 listed
ACTUATOR FEATURES
• UL/CSA Listed Motor
• GFPP NEMA 4 / 4X Enclosure
• 2.5 Second, 90° Cycle Time
• Permanently Lubricated Gear Train
• Actuator Brake
• 90 or 180° Operation
• Unidirectional, Not Reversing
• Terminal Block Connections
• Standard 120 VAC
• End of Travel Dry Contact Limit Switch
• Thermal Overload Protection
• Lightweight, Compact and Inexpensive

Specifications

Item Number	EAUTBH210STE
Brand	Hayward
Actuator Series	EAU1 Series Electronic Actuators
Actuator Type	Electric
Category	Actuated Valves
Category	N/A
Class	N/A
Control	0°-90°-180°
Cv Coefficient	29
Cv Coefficient	29.0000
Cycle Speed Sec 60hz Dc	2.5 sec
Duty Cycle	25%
Enclosure Material	Polypropylene
Enclosure	NEMA4/4X
End Connection Type	Socket/Threaded
End Connection	Socket/Threaded
Housing Material	GFPP
Material	CPVC Body / CPVC Standard Ball
Method of Operation	Actuated
O-Ring Material	EPDM
Operating Pressure [Max]	250 psi
Operation	On / Off
Phase	Single Phase
Pipe Size	1 in
Power Type	AC/DC
Pressure Rating	250 PSI
Sealing Material	EPDM
Seat Material	PTFE
Series	Hayward QuikShip Automated Valves
Size	1"
Standard Voltage	120VAC
Sub Category	N/A
SubCategory	Actuated True Union Ball Valve
SubCategory	EAU1 Series Automated With TBH True Union Ball Valves
Subtype	Automated Valves
Torque Rating	120 in/lbs
Type	Thermoplastic Valves
Valve Material	CPVC
Valve Series	TBH Series True Union Ball Valves
Valve Type	Ball
Voltage	120 VAC
