14001.0-00 | PTC Heater 15 - 150W - 30W | EXM

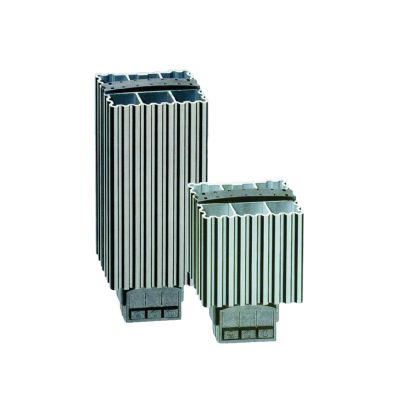

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature must be maintained above a minimum value. The aluminum profile heater body design has a chimney effect to distribute heat evenly. The cage clamp connectors save time and simplify installation.

Heating element PTC resistor - temperature limiting Heater body extruded aluminum profile, anodized Connection 3 cage clamps for solid wire AWG 20-14 (0.5-2.5mm²), and stranded wire AWG 20-16 (0.5-1.5mm²) with wire end ferrule Connection casing plastic, UL 94V-0, black Mounting clip for 35mm DIN rail, EN 60715 Mounting position vertical Operating / Storage temperature -49 to 158°F (-45 to 70°C) Operating / Storage humidity max. 90 %RH (non-condensing) Protection class / Protection type I (grounded) / IP20 Approvals UL File No. E150057, VDE, GOST-R Note: other voltages available upon request
