V10 | Mini-size flow switch | brass | normally open or closed. | Dwyer

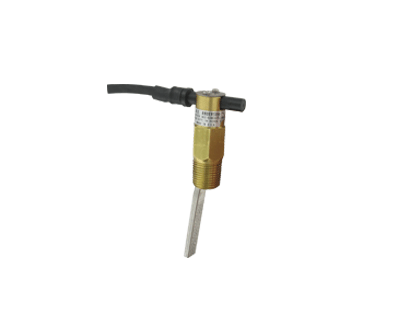

Mini-size flow switch, brass, normally open or closed.

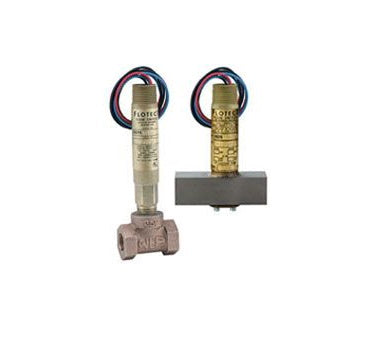

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V10
Documents and manuals
Dwyer V10 Documents
Overview
Details for V10
See catalog product page for full listing
Mini-size flow switch | brass | normally open or closed.
SERIES V10 FLOTECT® MINI-SIZE FLOW SWITCH
Proof of Flow or No Flow in 1/2" to 2" Pipe, Cost Effective, Leak Proof Body, Weatherproof
The Series V10 Flotect® Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. This series is available for field installation in pipelines from 1/2 to 2" diameter and available in brass or 303 SS body.
Product Applications
- Proving flow in boilers, hot water heaters, and chillers
- Protects pumps, motors and other equipment against low or no flow
- Automatically starts auxiliary pumps and engines
- Superior performance with rugged magnetically-actuated switching design and hermetically sealed reed switch
- Application flexibility with simple field switch adjustment allowing to toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection
- Save time and money on maintenance with electrical assembly that can be easily replaced without removing the unit from installation so that the process does not have to be shut down
- Solves application needs with full size, field-trimmable stainless steel vane provided with removable template calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations
Specifications
- Series
- V10 FLOTECT® MINI-SIZE FLOW SWITCH
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- V10 FLOTECT® MINI-SIZE FLOW SWITCH
- Service
- Compatible gases or liquids.
- Wetted Material
- Vane: 301 SS; Body: Brass or 303 SS; Pin and Magnet: Ceramic 8.
- Temperature Limit
- 200°F (93°C).
- Pressure Limit
- Brass body: 1000 psig (69 bar); 303 SS body: 2000 psig (138 bar).
- Enclosure Rating
- Weatherproof; meets NEMA 4X (IP66).
- Switch Type
- SPST hermetically sealed reed switch. Field adjustable for normally open or normally closed.
- Electrical Rating
- 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res.; 0.001 A @ 200 VDC res.
- Electrical Connections
- 18 AWG; 19" (483 mm) long; PVC jacket. Rated 221°F (105°C).
- Process Connection
- 1/2" male NPT standard. Contact factory for other options.
- Mounting Orientation
- Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values.
- Set Point Adjustment
- Vane is trimmable.
- Weight
- 5.5 oz (0.16 kg).
- Agency Approvals
- CE; CSA; UR.
- Switch Enclosure
- Nylon.
