TS3-50040 | Digital temperature switch | single temperature probe input | SPDT relay output | red display and buttons | 24 VAC/VDC power supply. | Dwyer

Digital temperature switch, single temperature probe input, SPDT relay output, red display and buttons, 24 VAC/VDC power supply.

Brand: DwyerSKU: TS3-50040

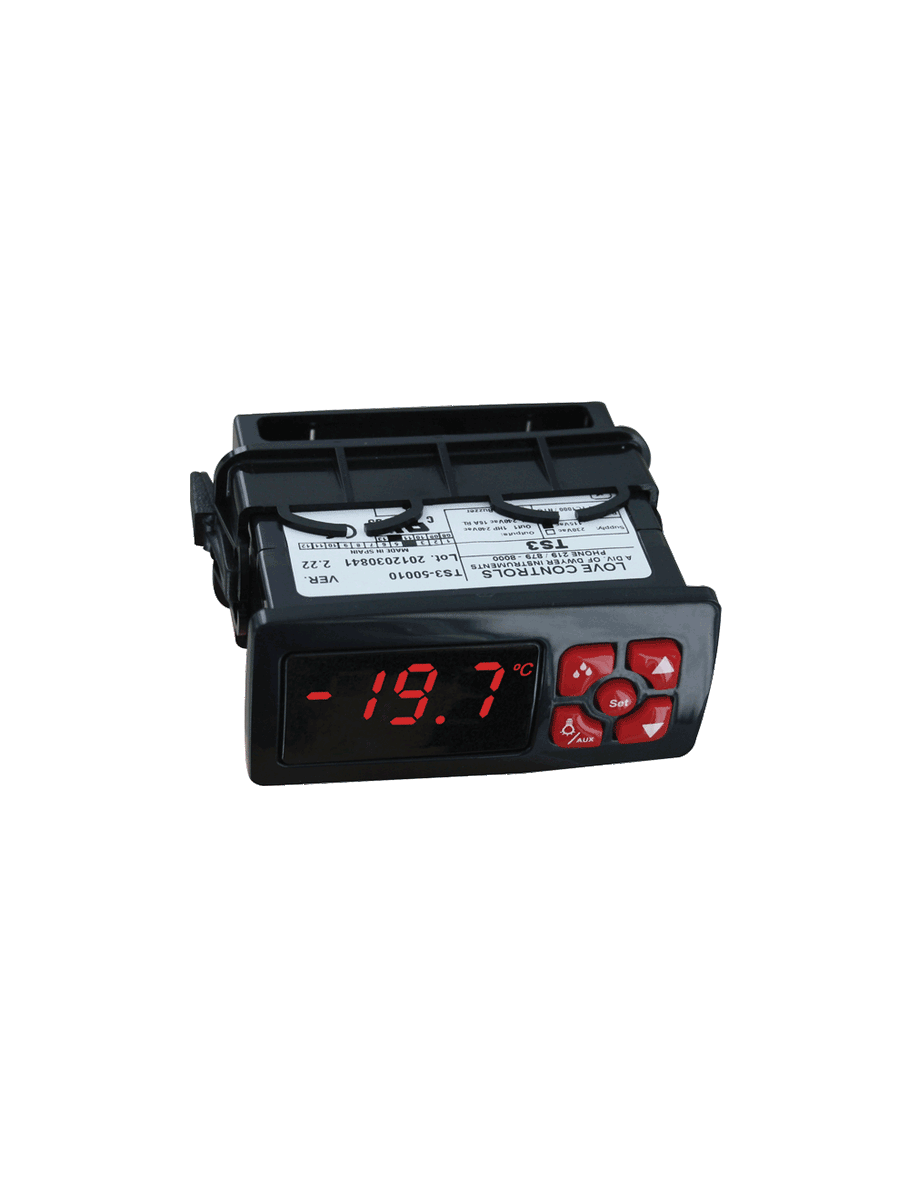

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS3-50040

Jump to: Overview & Specifications Reviews

Overview Details for TS3-50040

See catalog product page for full listing

Digital temperature switch | single temperature probe input | SPDT relay output | red display and buttons | 24 VAC/VDC power supply.

SERIES TS3 DIGITAL TEMPERATURE SWITCH

Field Selectable Engineering Units, Real Time Clock

The Series TS3 Digital Temperature Switch is the ideal control for on/off heating or cooling applications. This generation of controls has field selectable engineering units and temperature probe types in order to reduce the combination of parts that need to be stocked. A built-in real time clock is used for HACCP logging of temperature alarms caused by temperatures outside of their set limits or loss of power. For refrigeration applications, the defrost cycle can be initiated based on time or using the front panel keys. For programming multiple units, the model TS2-K configuration key can be used to quickly download parameter settings.

Product Applications

Refrigerators
Chillers
Food service equipment
Medical sterilizers or equipment

Field selectable °F or °C
Real time clock
HACCP alarm logging
Configuration key

Specifications

Series: TS3 DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TS3 DIGITAL TEMPERATURE SWITCH
Probe Range: PTC: -58 to 302°F (-50 to 150°C); NTC: -58 to 230°F (-50 to 110°C).
Input: PTC (1000Ω @ 25°C); NTC (10KΩ @ 25°C).
Output: R1 SPDT relay resistive load 16 A; inductive load 10 FLA; 60 LRA @ 240 VAC.
Horsepower Rating: 1HP @ 240 VAC.
Control Type: On/Off.
Power Requirement: 115 VAC; 230 VAC; 12 VAC/VDC; 24 VAC/DC (±10%) depending on model.
Power Consumption: 3.6 VA (115/230/24 V); 1.5 VA (12V).
Accuracy: ±1% FS.
Display: 3 digit; plus sign.
Resolution: 0.1°.
Memory Backup: Nonvolatile memory.
Ambient Temperature: 32 to 131°F (0 to 55°C).
Weight: 2.3 oz (65 g).
Agency Approvals: CE; cURus.
