MVS-6 | Miniature vacuum switch | min. set point 81" w.c. (200 mbar) | max. set point 330" w.c. (822 mbar) | 1/8" male NPT process connection. | Dwyer

Miniature vacuum switch, min. set point 81" w.c. (200 mbar), max. set point 330" w.c. (822 mbar), 1/8" male NPT process connection.

Brand: DwyerSKU: MVS-6

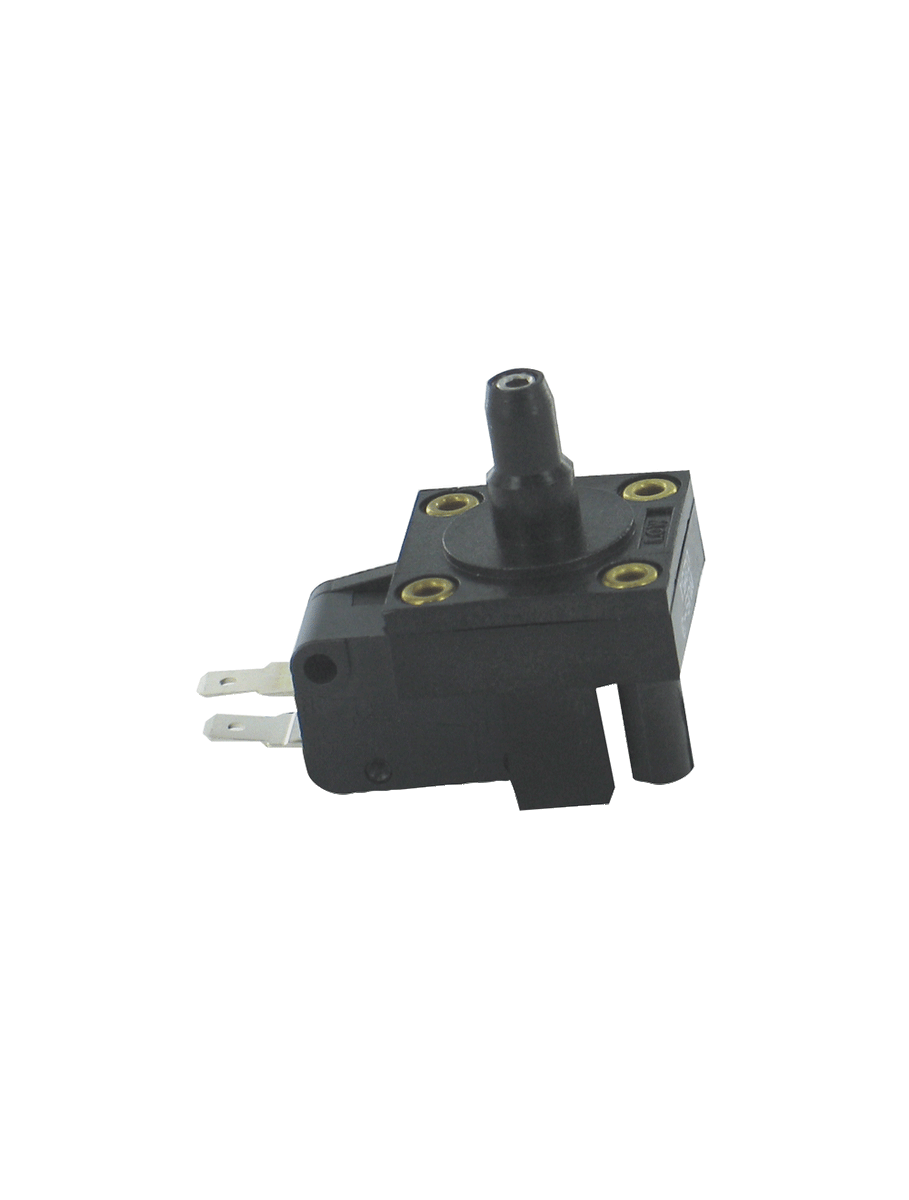

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVS-6

Jump to: Overview & Specifications Reviews

Overview Details for MVS-6

See catalog product page for full listing

Miniature vacuum switch | min. set point 81" w.c. (200 mbar) | max. set point 330" w.c. (822 mbar) | 1/8" male NPT process connection.

SERIES MVS MINIATURE VACUUM SWITCH

SPDT N/O or N/C Switch, Adjustable Set Point, Ideal for OEM's

Compact, lightweight, and adjustable, the Series MVS Miniature Vacuum Switch is specially designed for OEM applications. This low cost switch has a minimum life expectancy of 10 million cycles and has an extremely fast response time. Typical applications for the MVS are HVAC, home appliance, dairy systems, medical, office equipment, and pump control.

NOTE: 50 PIECE MINIMUM ORDER.

Product Applications

OEM
HVAC applications
Medical equipment
Dairy equipment
Pump control

High switch cycle means long life for extended duty applications

Specifications

Series: MVS MINIATURE VACUUM SWITCH
Category/Type: Pressure
Type: Single Pressure
Series: MVS MINIATURE VACUUM SWITCH
Service: Air or compatible fluids on "high side".
Wetted Materials: Housing: polycarbonate; Diaphragm: polyurethane.
Temperature Limits: 40 to 150°F (4 to 66°C).
Pressure Limits: Up to maximum range.
Repeatability: ±20%.
Switch Type: SPDT normally open or normally closed.
Electrical Rating: Range 3 to 8" w.c.: 3 A; 125/250 VAC; Range 9 to 80" w.c.: 10 A; 125/250 VAC; Range 81 to 330" w.c.: 15 A; 125/250 VAC.
Contacts: Silver with brass terminals.
Electrical Connections: Terminals - 0.187" x 0.20: spade for use with quick disconnects.
Process Connections: Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT.
Mounting: Use #2 screws through eyelets.
Weight: Less than 19 g.
Agency Approvals: cULus.
