MN-1 | Mini-Node™ RS-485 to USB converter | Dwyer

Mini-Node™ RS-485 to USB converter

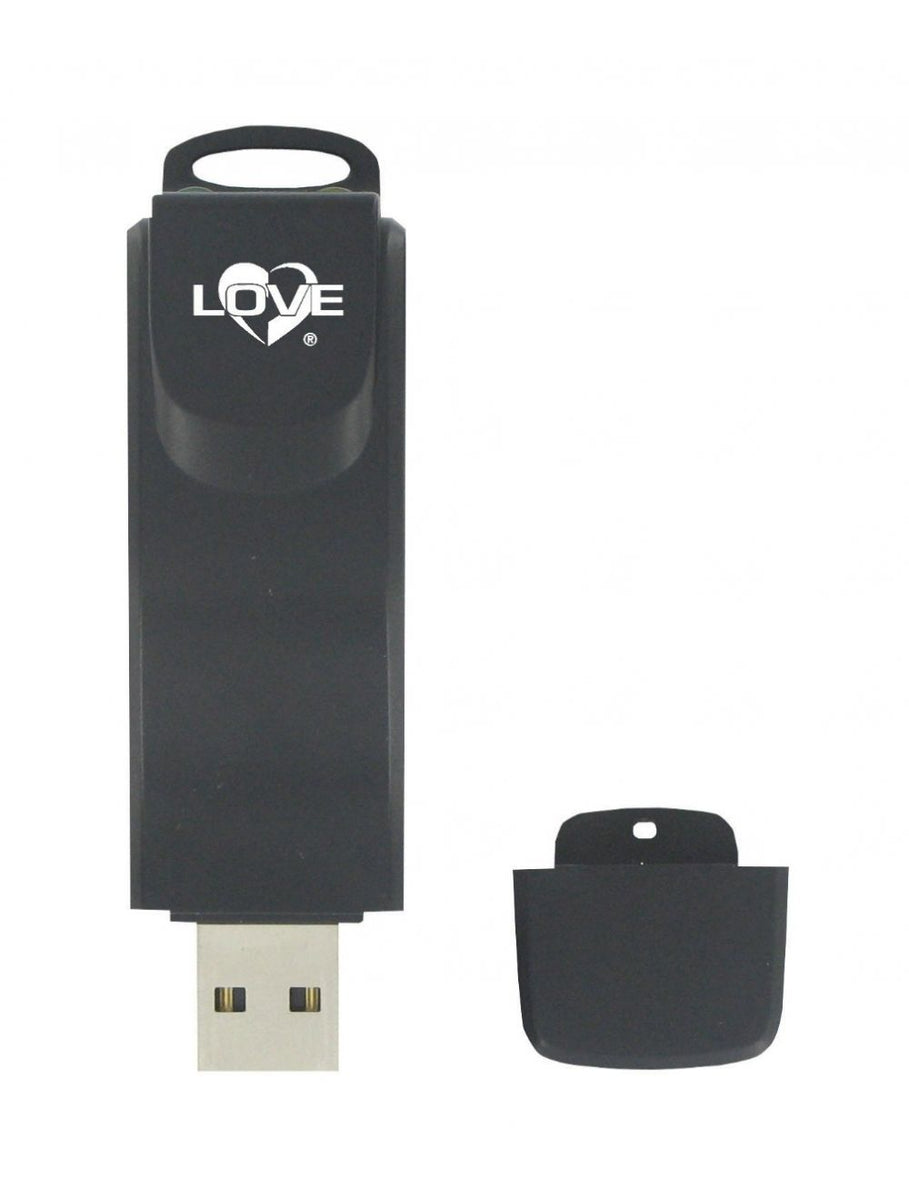

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MN-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer MN-1 Documents

Instruction Manual Model MN-1 Catalog Page More Info

Overview

Details for MN-1

See catalog product page for full listing

Mini-Node™ RS-485 to USB converter

MODEL MN-1 MINI-NODE™ COMMUNICATION SIGNAL CONVERTER

Converts RS-485 to USB, Integral USB Connector, No External Power

The Model MN-1 Mini-Node™ Communication Signal Converter is a low cost device that converts half duplex RS-485 serial communications signals into a signal that can be read by any computer with a USB port. The integral USB connector and RJ-45 connector reduces set up time by eliminating extra wiring. The Model MN-1 is powered via the USB connection which eliminates the need for an external power source. The compact size is great for field installation, control panels, and lab testing.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Packaging equipment
Environmental chambers
Medical equipment
Food service equipment

Converts half-duplex RS-485 via USB port
Reduces set up time of process controllers

Specifications

Power Requirements: No external power required.
Power Consumption: 0.4 W.
Isolated Voltage: 3000 VDC.
Input Impedance: 96 kΩ.
USB Connector: B-Type (Female).
RS-485 Connector: RJ-45.
Baud Rate: 75; 150; 300; 600; 1200; 2400; 4800; 9600; 19200; 38400; 57600; and 115200 bps.
Compatibility: Full compliance with USB V.2.0 specification.
Agency Approvals: CE.
