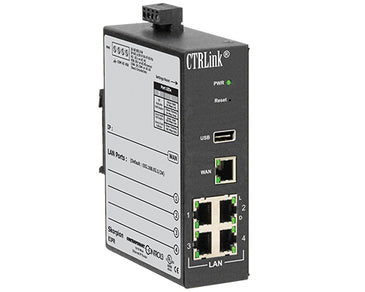

EIPR-E | Ethernet IP Router with Four-port Switch | Contemporary Controls
Details
Contemporary Controls part#: EIPR-E
Features
- Web page configuration
- 10/100 Mbps WAN port
- 4-port 10/100 Mbps Ethernet LAN switch
- PAT, NAT and Port Forwarding
- NAT Loopback
- Stateful firewall (can be disabled)
|
- DHCP client (WAN) and DHCP server (LAN)
- Wireless connectivity via USB port
- DIN-rail mounting
- Diagnostic LEDs
- CE Mark, RoHS, UL 508, C22.2 No. 142-M1987
- 24 VAC/VDC powered
|
Product Overview
The EIPR links two 10/100 Mbps Internet Protocol (IPv4)
networks — passing appropriate traffic while blocking all
other traffic. One network is the local-area-network
(LAN); the other is the wide-area-network (WAN). The
built-in stateful firewall passes communication initiated
on the LAN-side while blocking WAN-side initiated
communication. With Port Address Translation (PAT),
LAN-side clients can access the Internet. Network
Address Translation (NAT) allows a one-to-one
translation between LAN-side and WAN-side devices.
With Port Forwarding, LAN-side devices can be accessed
from the Internet. The EIPR incorporates a four-port
Ethernet switch for multiple LAN-side connections. An
external Ethernet-based modem — cable or DSL —
can be used to connect to the Internet. DSL modems
connect via the PPPoE protocol. A USB port allows
expansion to wireless networks.
If a suitable USB adapter is attached, either EIPR model can become a Wi-Fi access point. The EIPR-V can also access cellular networks through its USB port if a suitable cellular adapter is attached (in which case its wired WAN port is disabled). With its real-time clock and
OpenVPN firmware, the EIPR-V also supports a VPN
(virtual-private-network) — so you can obtain secure
remote communication — compatible with cloud-VPN
service from Contemporary Controls.
Features
- Web page configuration
- 10/100 Mbps WAN port
- 4-port 10/100 Mbps Ethernet LAN switch
- PAT, NAT and Port Forwarding
- NAT Loopback
- Stateful firewall (can be disabled)
|
- DHCP client (WAN) and DHCP server (LAN)
- Wireless connectivity via USB port
- DIN-rail mounting
- Diagnostic LEDs
- CE Mark, RoHS, UL 508, C22.2 No. 142-M1987
- 24 VAC/VDC powered
|
Product Overview
The EIPR links two 10/100 Mbps Internet Protocol (IPv4)
networks — passing appropriate traffic while blocking all
other traffic. One network is the local-area-network
(LAN); the other is the wide-area-network (WAN). The
built-in stateful firewall passes communication initiated
on the LAN-side while blocking WAN-side initiated
communication. With Port Address Translation (PAT),
LAN-side clients can access the Internet. Network
Address Translation (NAT) allows a one-to-one
translation between LAN-side and WAN-side devices.
With Port Forwarding, LAN-side devices can be accessed
from the Internet. The EIPR incorporates a four-port
Ethernet switch for multiple LAN-side connections. An
external Ethernet-based modem — cable or DSL —
can be used to connect to the Internet. DSL modems
connect via the PPPoE protocol. A USB port allows
expansion to wireless networks.
If a suitable USB adapter is attached, either EIPR model can become a Wi-Fi access point. The EIPR-V can also access cellular networks through its USB port if a suitable cellular adapter is attached (in which case its wired WAN port is disabled). With its real-time clock and
OpenVPN firmware, the EIPR-V also supports a VPN
(virtual-private-network) — so you can obtain secure
remote communication — compatible with cloud-VPN
service from Contemporary Controls.
